D223Z29Z5VF6UJ5R

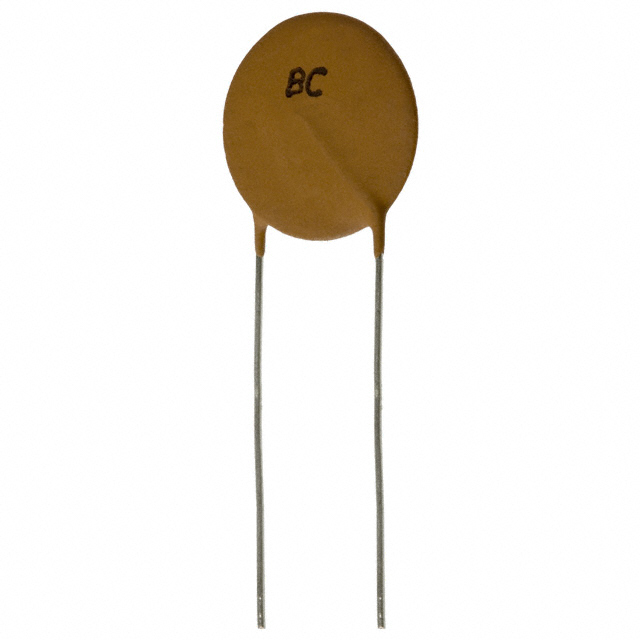

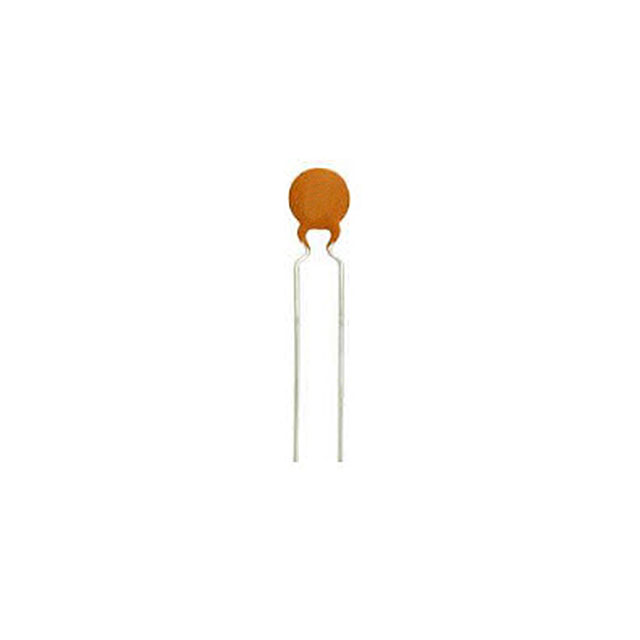

lmages are for reference only.D223Z29Z5VF6UJ5R
CAP CER 0.022UF 50V Z5V RADIAL
DatasheetRadial, Disc
90,864 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.022 µF -20%, +80% 50V Ceramic Capacitor Z5V Radial, Disc
D223Z29Z5VF6UJ5R
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | D |
| Packaging | Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.022 µF |
| Tolerance | -20%, +80% |
| Voltage - Rated | 50V |
| Temperature Coefficient | Z5V |
| Operating Temperature | -30°C ~ 125°C |
| Features | - |
| Ratings | - |
| Applications | General Purpose |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.295" Dia (7.50mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | - |
| Lead Spacing | 0.197" (5.00mm) |
| Lead Style | Formed Leads - Kinked |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | D100D135CR17302KR | D100D20C0GH63L6 | D100D20C0GH63L6R | D100D31CR17101KR/LS374 |
| Manufacturer | CalRamic Technologies LLC | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | CalRamic Technologies LLC |
| RoHS Status | RoHS Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 10KV, CR17-N4700, 3000PF, +/-10% | CAP CER 10PF 100V NP0 RADIAL | CAP CER 10PF 100V NP0 RADIAL | 10KV, CR17-N4700, 100PF, +/-10%, |
| Series | CalRamic Technologies LLC | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | |
| Packaging | Bulk | Bulk | Bulk |
