D2AW-R1-ER003MP
lmages are for reference only.D2AW-R1-ER003MP
SWITCH SNAP ACT SUBMINI BASIC W/
Datasheet-
66,188 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Switch SPST-NO Chassis Mount
D2AW-R1-ER003MP
| Category | Switches - Limit Switches - |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | D2AW |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | - |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 14 V |
| Actuator Type | Round (Pin Plunger) |
| Mounting Type | Chassis Mount |
| Termination Style | Wire Leads |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Electrical Life | 200,000 Cycles |
| Mechanical Life | 200,000 Cycles |
| Features | - |
| Operating Force | 101gf |
| Release Force | 10gf |
| Operating Position | 0.283" (7.2mm) |
| Pretravel | - |
| Differential Travel | - |
| Overtravel | 0.055" (1.4mm) |
| Operating Temperature | -40°C ~ 85°C |
| Product Attribute |  |
 |
 |
 |

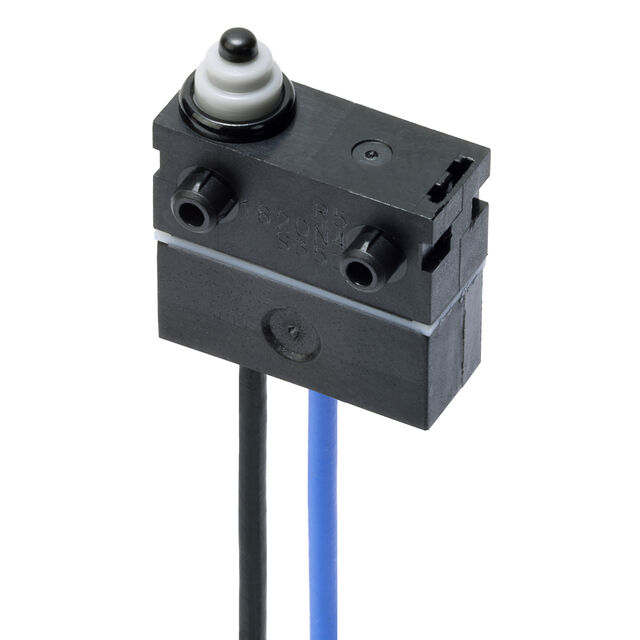

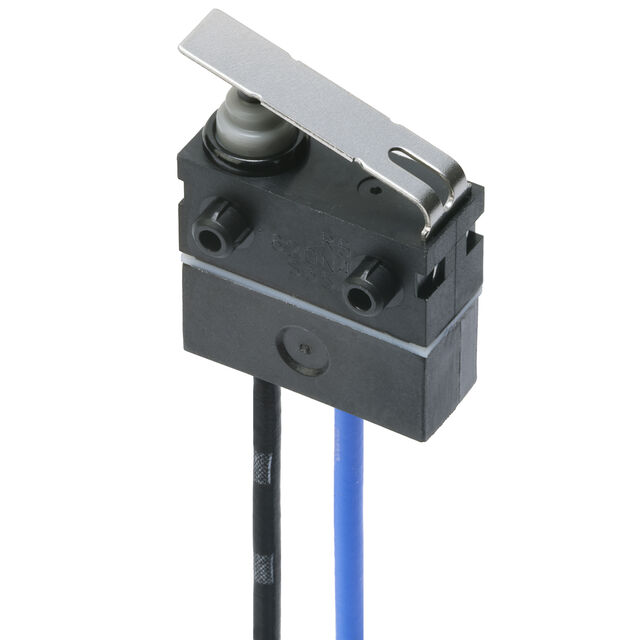

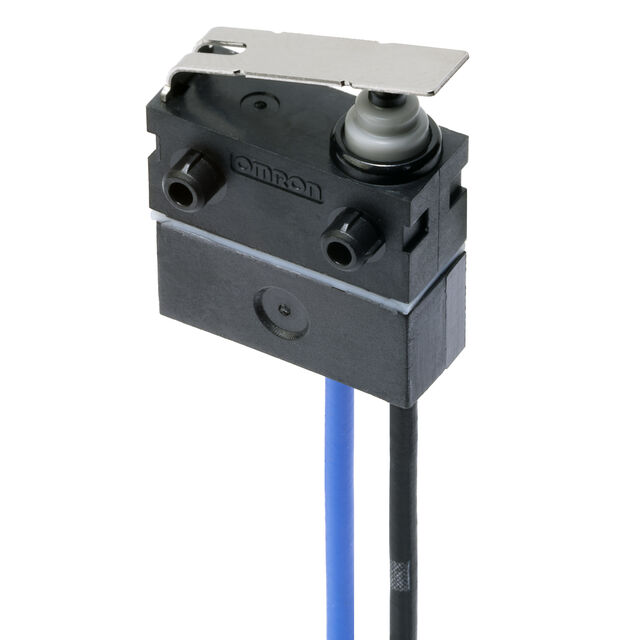

| Part Number | D2AW-R1-EL003MP | D2AW-R1-EL063MP | D2AW-R1-ER063MP | D2AW-A002D R |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH SNAP ACT SUBMINI BASIC W/ | SWITCH SNAP ACT SUBMINI BASIC W/ | SWITCH SNAP ACT SUBMINI BASIC W/ | SWITCH SNAP ACT SPST-NC 0.1A 12V |
| Series | D2AW | D2AW | D2AW | D2AW |
| Packaging | Tray | Tray | Tray | Bulk |
