Product CatalogPart Number
D3V-165M-1A5
Manufacturer
Omron Electronics Inc-EMC DivDescription
SWITCH SNAP ACTION SPDT 16A 250V
Datasheet
DatasheetPackage
-
In Stock
73,291 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
D3V-165M-1A5
D3V-165M-1A5
lmages are for reference only.Payment Methods
Delivery Services
Switch SPDT Chassis Mount
Quick Inquiry
D3V-165M-1A5
Specifications
| Category | Switches - Limit Switches - |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | D3V |
| Packaging | Box |
| RoHS Status | RoHS Compliant |
| Base Product Number | D3V |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | 16A (AC), 10A (DC) |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 30 V |
| Actuator Type | Lever, Roller |
| Mounting Type | Chassis Mount |
| Termination Style | Solder, Quick Connect - 0.187" (4.7mm) |
| Ingress Protection | IP40 |
| Electrical Life | 100,000 Cycles |
| Mechanical Life | 10,000,000 Cycles |
| Features | - |
| Operating Force | 240gf |
| Release Force | 50gf |
| Operating Position | 0.815" (20.7mm) |
| Pretravel | 0.063" (1.6mm) |
| Differential Travel | 0.025" (0.6mm) |
| Overtravel | 0.031" (0.79mm) |
| Operating Temperature | -25°C ~ 105°C |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

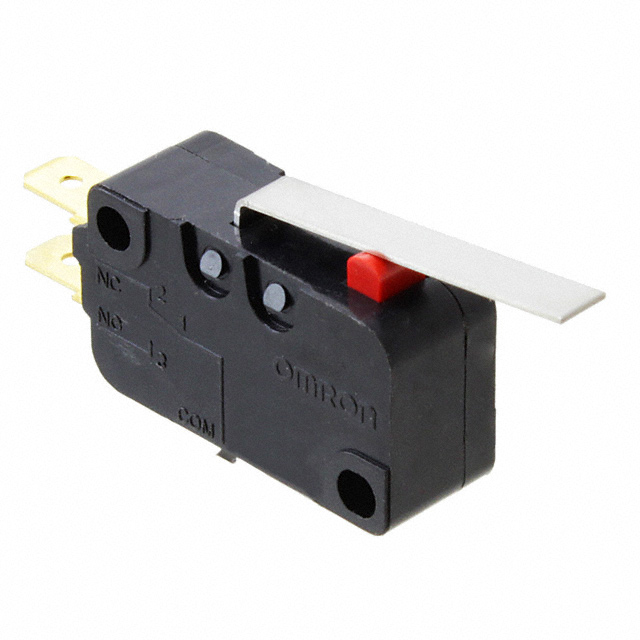

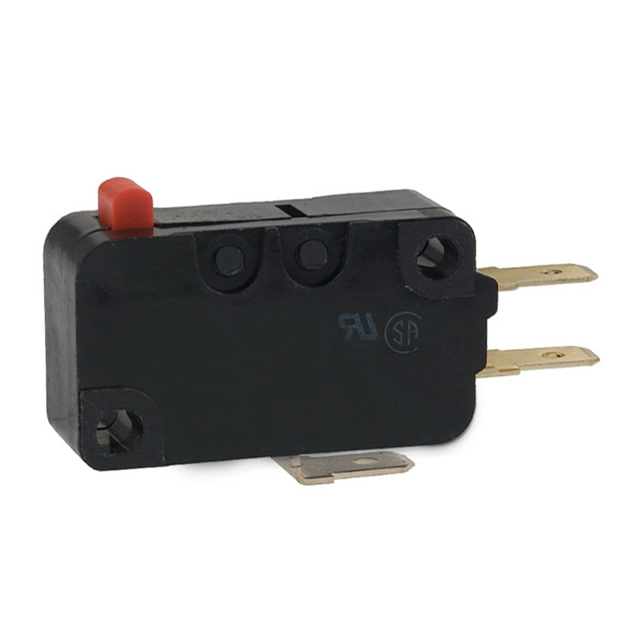

| Part Number | D3V-165M-2A5 | D3V-165M-3C25 | D3V-16-1D56-K | D3V-16-1E6 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SWITCH SNAP ACT SPST-NC 16A 250V | SWITCH SNAP ACT SPST-NO 16A 250V | SWITCH SNAP ACTION SPDT 16A 250V | SWITCH SNAP ACTION SPDT 16A 250V |
| Series | D3V | D3V | D3V | D3V |
| Packaging | Bulk | Bulk | Bulk | Bulk |
