Product CatalogPart Number
D4C-3032-DK1EJ03
Manufacturer
Omron Automation and SafetyDescription
SWITCH SNAP ACTION SPDT 1A 30V
Datasheet
DatasheetPackage
-
In Stock
31,529 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
D4C-3032-DK1EJ03
D4C-3032-DK1EJ03
lmages are for reference only.Payment Methods
Delivery Services
Switch SPDT Chassis Mount
Quick Inquiry
D4C-3032-DK1EJ03
Specifications
| Category | Switches - Limit Switches - |
| Manufacturer | Omron Automation and Safety |
| Series | D4C |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | D4C |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | 1A (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 30 V |
| Actuator Type | Roller Plunger |
| Mounting Type | Chassis Mount |
| Termination Style | Cable with Connector |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Electrical Life | 1,000,000 Cycles |
| Mechanical Life | 10,000,000 Cycles |
| Features | Cable Length 0.3m, Status Indicator |
| Operating Force | 1800gf |
| Release Force | 450gf |
| Operating Position | 1.350" (34.3mm) |
| Pretravel | 0.071" (1.8mm) |
| Differential Travel | 0.008" (0.2mm) |
| Overtravel | 0.118" (3.0mm) |
| Operating Temperature | -10°C ~ 70°C |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | D4C-3001-DK1EJ03 | D4C-3001-M1J 0.3M | D4C-3002-DK1EJ03 | D4C-3002-M1GJ 0.5M |
| Manufacturer | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety |
| RoHS Status | RoHS Compliant | RoHS non-compliant | RoHS Compliant | RoHS Compliant |
| Description | SWITCH SNAP ACTION SPDT 1A 30V | SWITCH LIMIT SPDT 1A 30V | SWITCH SNAP ACTION SPDT 1A 30V | SWITCH SNAP ACTION SPDT 1A 30V |
| Series | D4C | D4C | D4C | D4C |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products

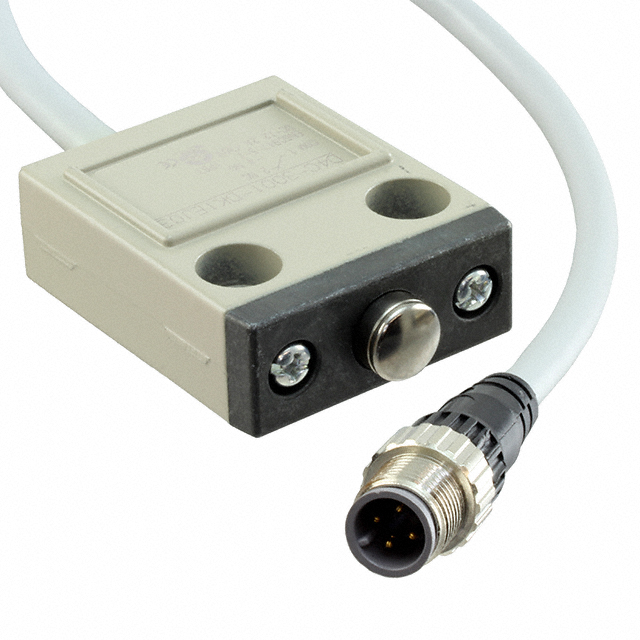

D4C-3001-DK1EJ03
Omron Automation and Safety
D4C-3001-M1J 0.3M
Omron Automation and Safety

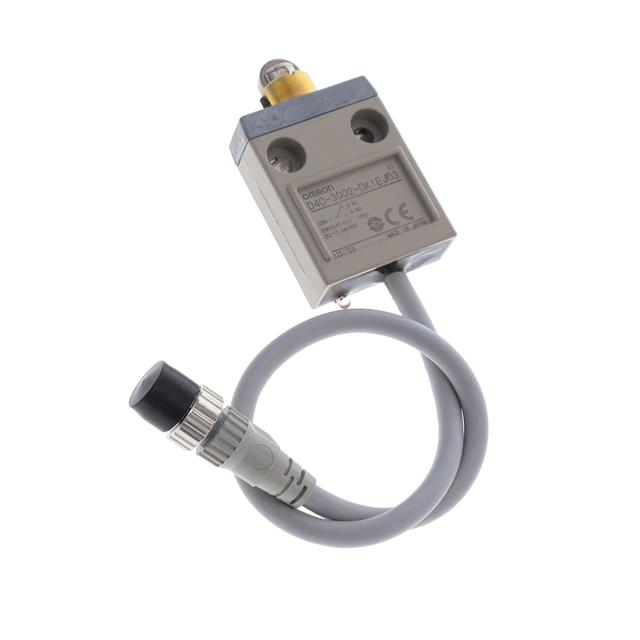

D4C-3002-DK1EJ03
Omron Automation and Safety

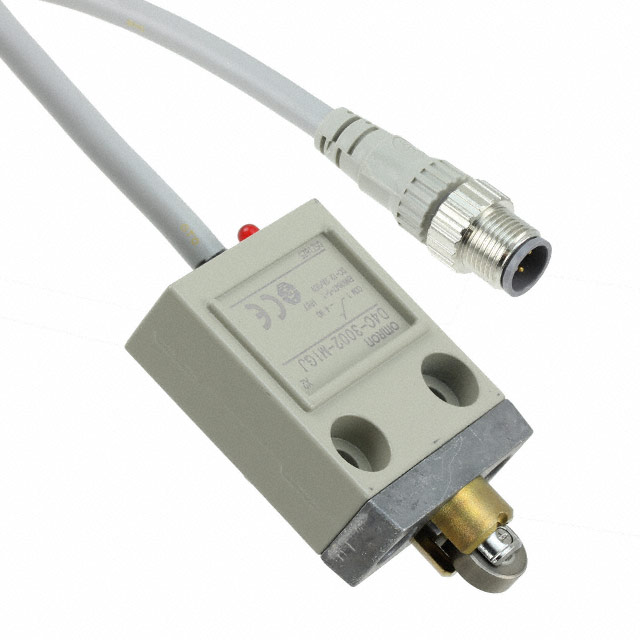

D4C-3002-M1GJ 0.5M
Omron Automation and Safety

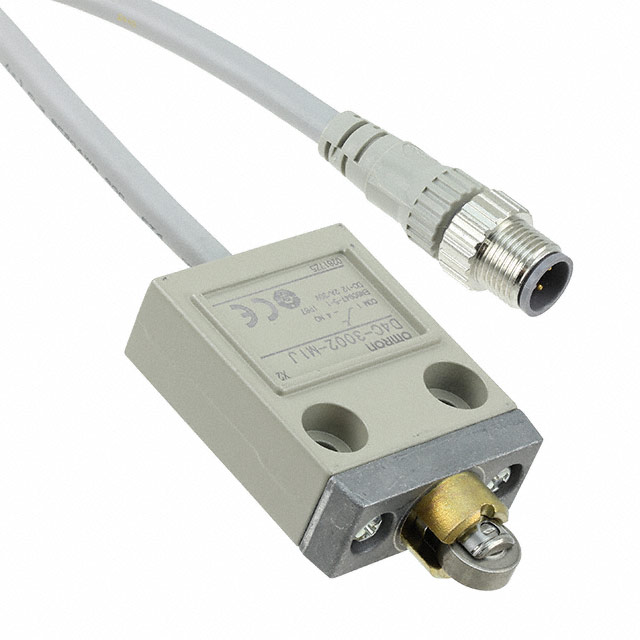

D4C-3002-M1J 0.3M
Omron Automation and Safety

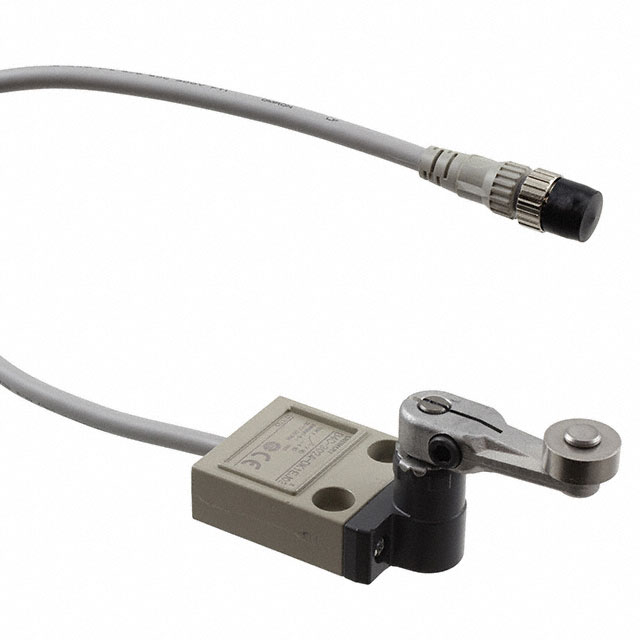

D4C-3024-DK1EJ03
Omron Automation and Safety

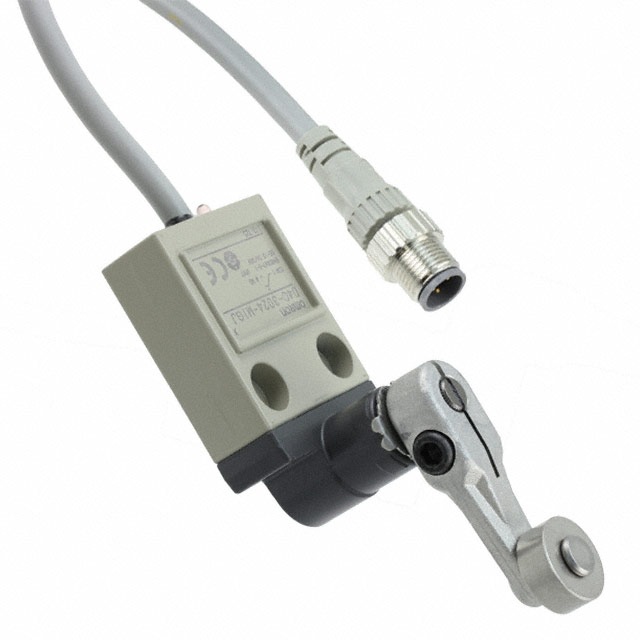

D4C-3024-M1GJ 0.5M
Omron Automation and Safety

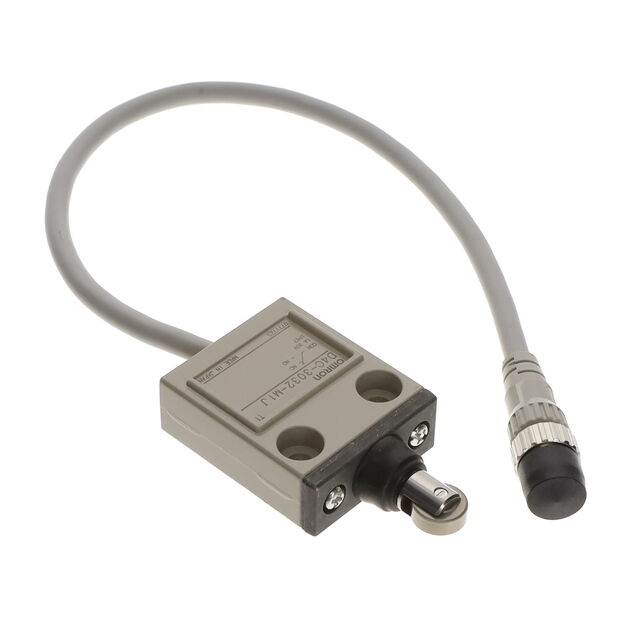

D4C-3032-M1J
Omron Automation and Safety
D4C-3060-DK1EJ03
Omron Automation and Safety

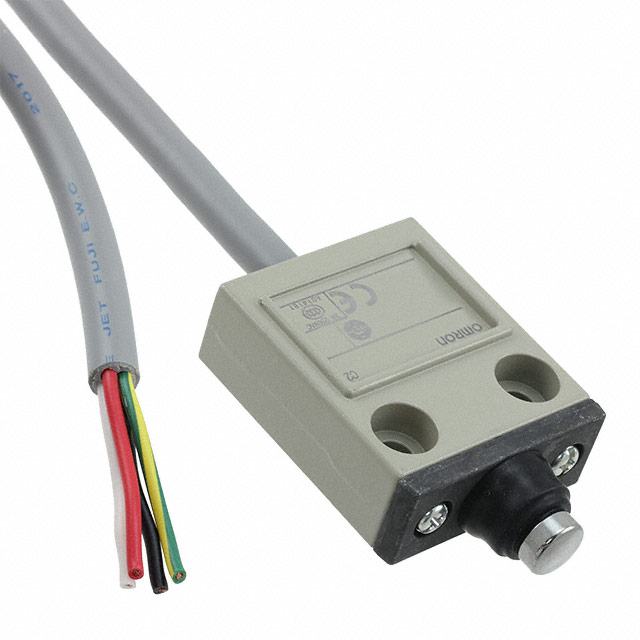

D4C-3201
Omron Automation and Safety

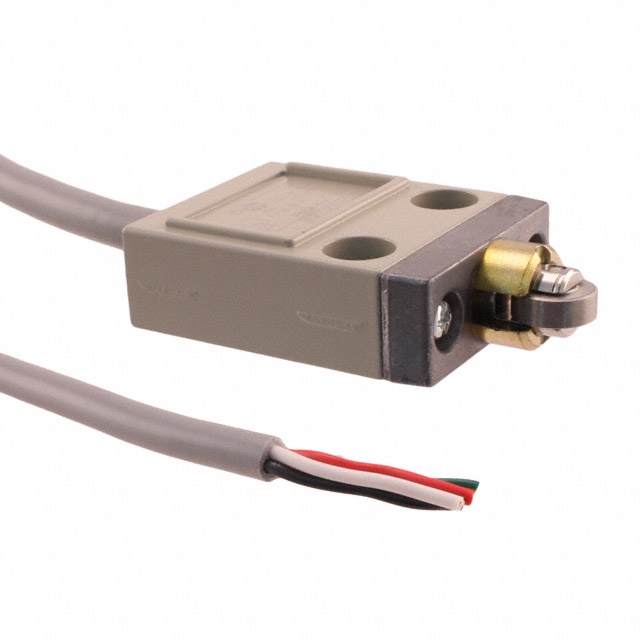

D4C-3202
Omron Automation and Safety
D4C-3202-M
Omron Automation and Safety
D4C-3203
Omron Automation and Safety

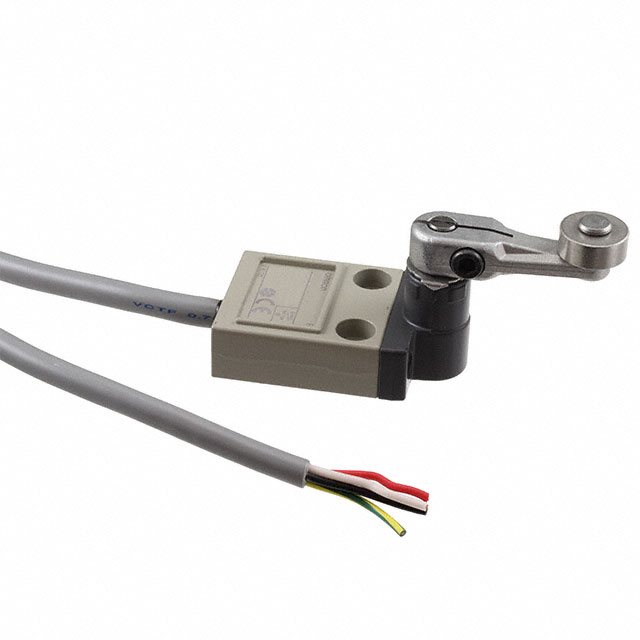

D4C-3220
Omron Automation and Safety

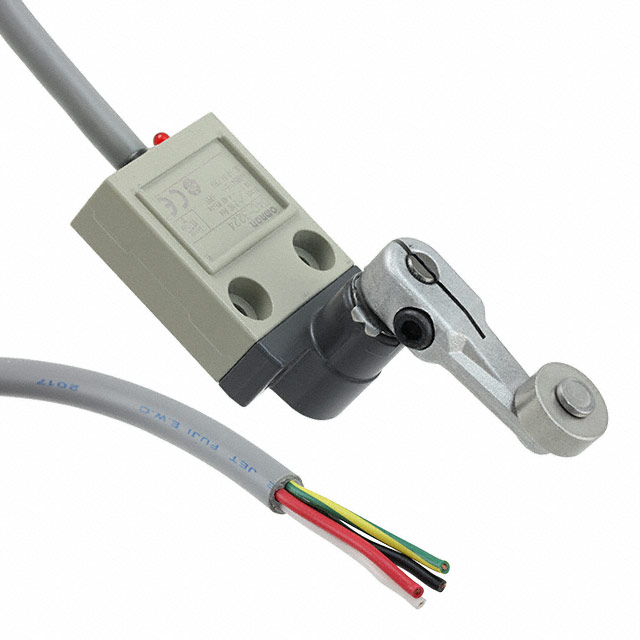

D4C-3224
Omron Automation and Safety

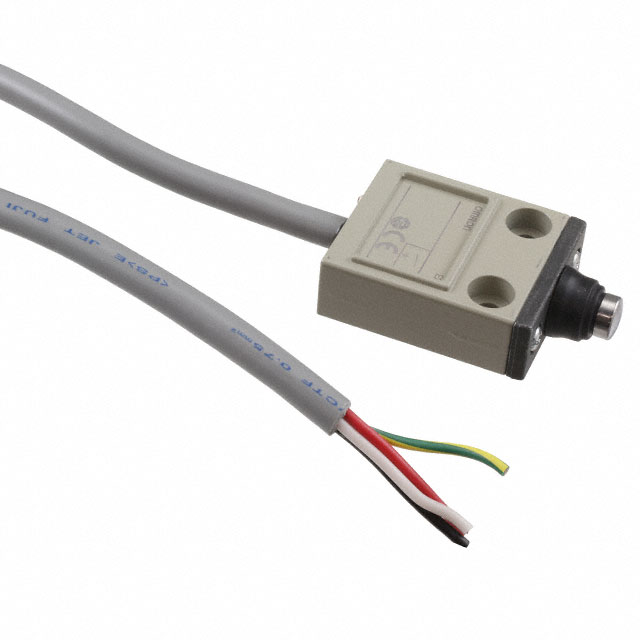

D4C-3231
Omron Automation and Safety

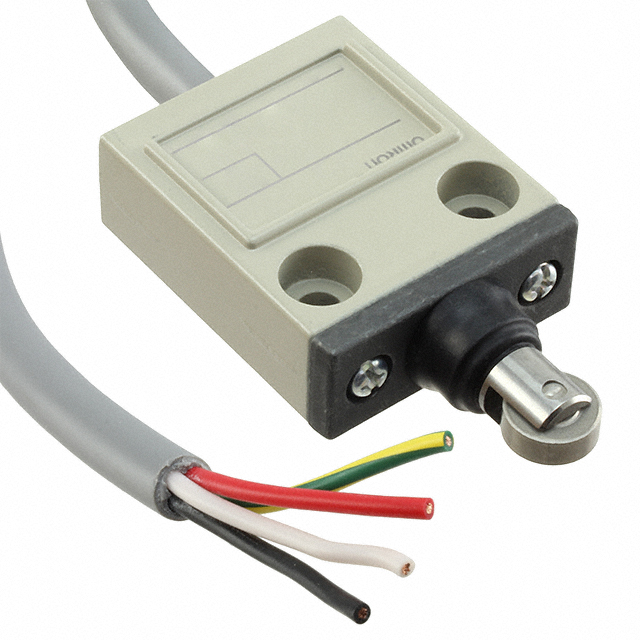

D4C-3232
