D681K20Y5PH6TL2R

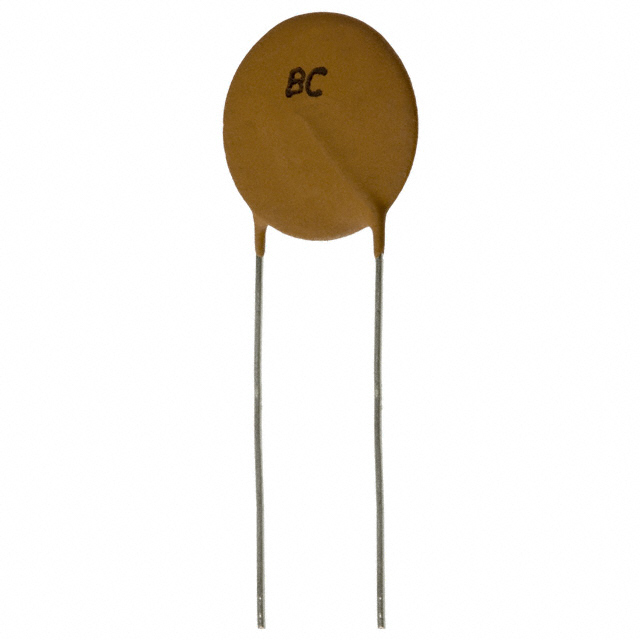

lmages are for reference only.D681K20Y5PH6TL2R
CAP CER 680PF 100V Y5P RADIAL
DatasheetRadial, Disc
25,134 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
680 pF ±10% 100V Ceramic Capacitor Y5P (B) Radial, Disc
D681K20Y5PH6TL2R
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | D |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 680 pF |
| Tolerance | ±10% |
| Voltage - Rated | 100V |
| Temperature Coefficient | Y5P (B) |
| Operating Temperature | -30°C ~ 125°C |
| Features | - |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | - |
| Lead Spacing | 0.098" (2.50mm) |
| Lead Style | Straight |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | D681K20Y5PH6TJ5R | D681K20Y5PF63J5R | D681K20Y5PF6TJ5R | D681K20Y5PF6UJ5R |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 680PF 100V Y5P RADIAL | CAP CER 680PF 50V Y5P RADIAL | CAP CER 680PF 50V Y5P RADIAL | CAP CER 680PF 50V Y5P RADIAL |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tape & Box (TB) |
