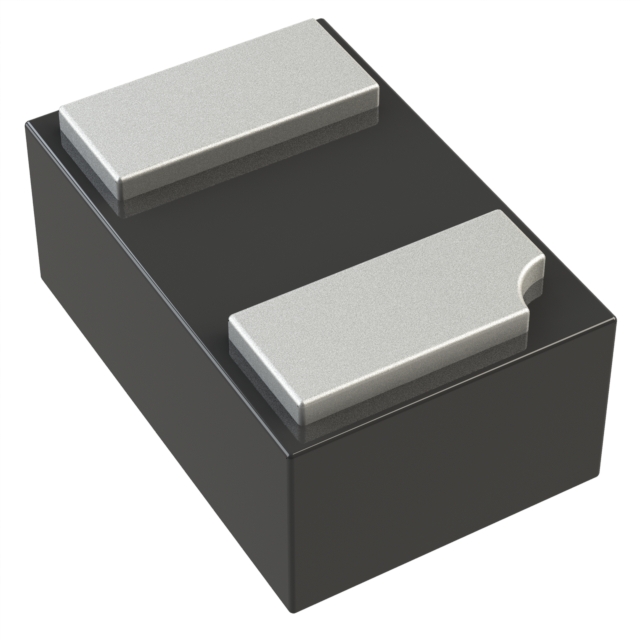

D6V3H1U2LP16-7
lmages are for reference only.D6V3H1U2LP16-7
TVS DIODE 6.3VWM 11.5VC 2DFN
Datasheet0603 (1610 Metric)
76,878 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
11.5V Clamp 90A (8/20µs) Ipp Tvs Diode Surface Mount U-DFN1610-2 (Type B)
D6V3H1U2LP16-7
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 6.3V (Max) |
| Voltage - Breakdown (Min) | 6.5V |
| Voltage - Clamping (Max) @ Ipp | 11.5V |
| Current - Peak Pulse (10/1000µs) | 90A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 800pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1610 Metric) |
| Supplier Device Package | U-DFN1610-2 (Type B) |
| Base Product Number | D6V3 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | D6V3H1U2LP-7B | D6V3H1U2LP4-7B | D6V3H1U2LPQ-7B | D6V3E1U2LP-7B |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 6.3VWM 12.5VC 2DFN | TVS DIODE 6.3VWM 12.5VC 2DFN | SURGE PROTECTION PP X1-DFN1006-2 | TVS DIODE 6.3VWM 10.5VC 2DFN |
| Series | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
