DA1206D301R-10

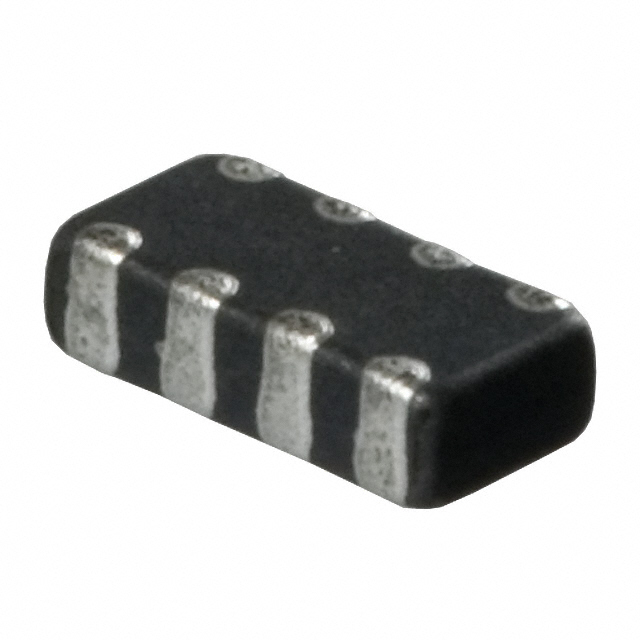

lmages are for reference only.DA1206D301R-10
FERRITE BEAD 300 OHM 1206 4LN
Datasheet1206 (3216 Metric), Array, 8 PC Pad
43,055 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
300 Ohms @ 100 MHz 4 Power, Signal Line Ferrite Bead 1206 (3216 Metric), Array, 8 PC Pad 400mA 400mOhm
DA1206D301R-10
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | Laird-Signal Integrity Products |
| Series | 1206 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power, Signal Line |
| Number of Lines | 4 |
| Impedance @ Frequency | 300 Ohms @ 100 MHz |
| Current Rating (Max) | 400mA |
| DC Resistance (DCR) (Max) | 400mOhm |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 1206 (3216 Metric), Array, 8 PC Pad |
| Mounting Type | Surface Mount |
| Height (Max) | 0.043" (1.10mm) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | DA1206D301R-00 | DA1206B102R-00 | DA1206B102R-10 | DA1206B601R-00 |
| Manufacturer | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | FERRITE BEAD 300 OHM 1206 4LN | FERRITE BEAD 1K OHM 1206 4LN | FERRITE BEAD 1K OHM 1206 4LN | FERRITE BEAD 600 OHM 1206 4LN |
| Series | DA | DA | 1206 | DA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
