Product CatalogPart Number
DAC80508MCYZFR
Manufacturer
Texas InstrumentsDescription
IC DAC 16BIT V-OUT 16DSBGA
Datasheet
DatasheetPackage
16-UFBGA, DSBGA
In Stock
72,296 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DAC80508MCYZFR
DAC80508MCYZFR
lmages are for reference only.Payment Methods
Delivery Services
16 Bit Digital to Analog Converter 8 16-DSBGA
Quick Inquiry
DAC80508MCYZFR
Specifications
| Category | Integrated Circuits (ICs) - Data Acquisition - Digital to Analog Converters DAC |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Number of Bits | 16 |
| Number of D/A Converters | 8 |
| Settling Time | 5µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 1.7V ~ 5.5V |
| INL/DNL (LSB) | ±0.5, ±0.5 |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 16-UFBGA, DSBGA |
| Supplier Device Package | 16-DSBGA |
| Mounting Type | Surface Mount |
| Base Product Number | DAC80508 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |

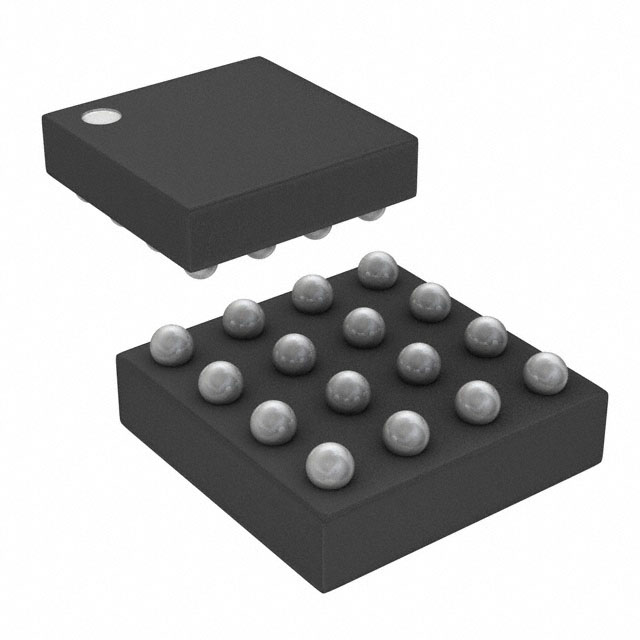

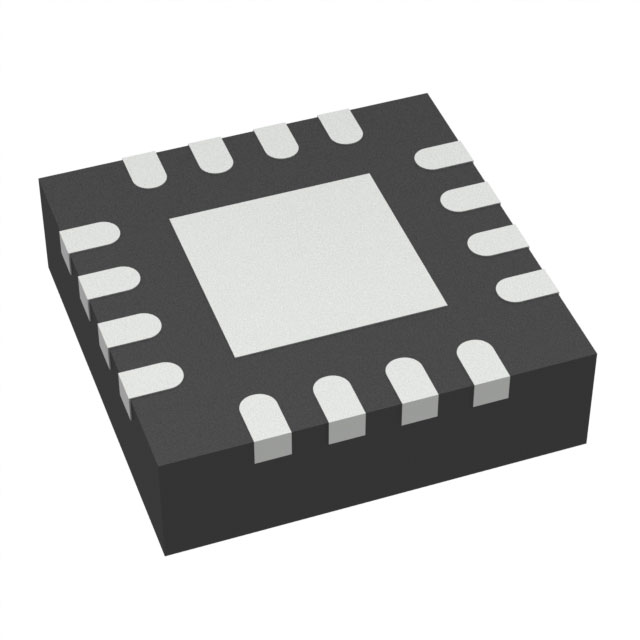

| Part Number | DAC80508MCYZFR | DAC80508MCYZFT | DAC80508MCYZFT | DAC80508MCRTER |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC DAC 16BIT V-OUT 16DSBGA | IC DAC 16BIT V-OUT 16DSBGA | IC DAC 16BIT V-OUT 16DSBGA | IC DAC 16BIT V-OUT 16WQFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products

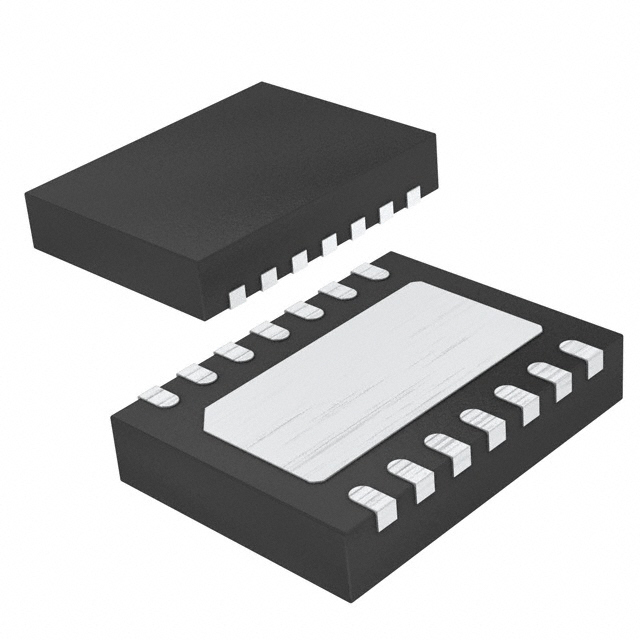

DAC80004IDMDR
