DBP.5570.Q.A.50
lmages are for reference only.DBP.5570.Q.A.50
RF FILTER BAND PASS 5.57GHZ 2SMD
Datasheet2-SMD, No Lead
48,711 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5.57GHz Center Frequency Band Pass RF Filter (Radio Frequency) 160MHz Bandwidth 3dB 2-SMD, No Lead
DBP.5570.Q.A.50
| Category | Filters - RF Filters - |
| Manufacturer | Taoglas Limited |
| Series | Airvu |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Frequency | 5.57GHz Center |
| Bandwidth | 160MHz |
| Filter Type | Band Pass |
| Ripple | 1.2dB |
| Insertion Loss | 3dB |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension | 0.339" L x 0.134" W (8.60mm x 3.40mm) |
| Height (Max) | 0.124" (3.15mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

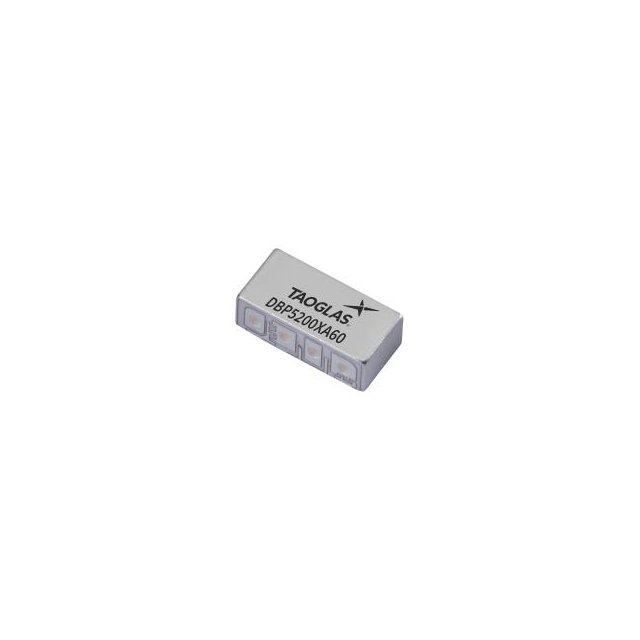

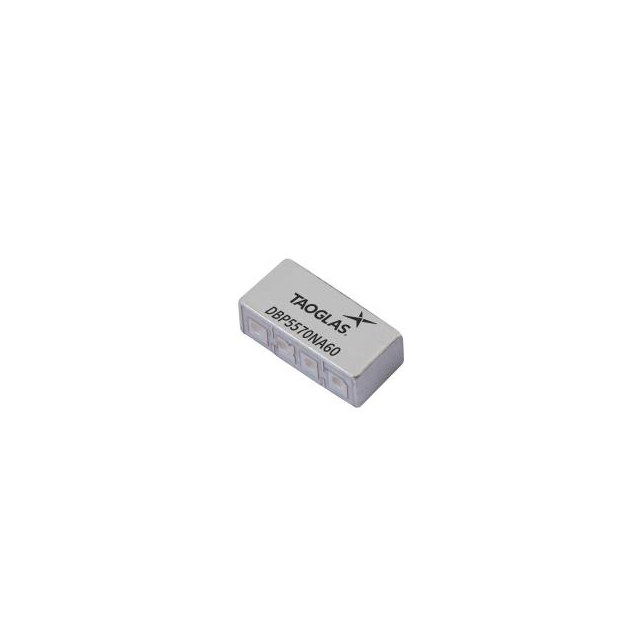

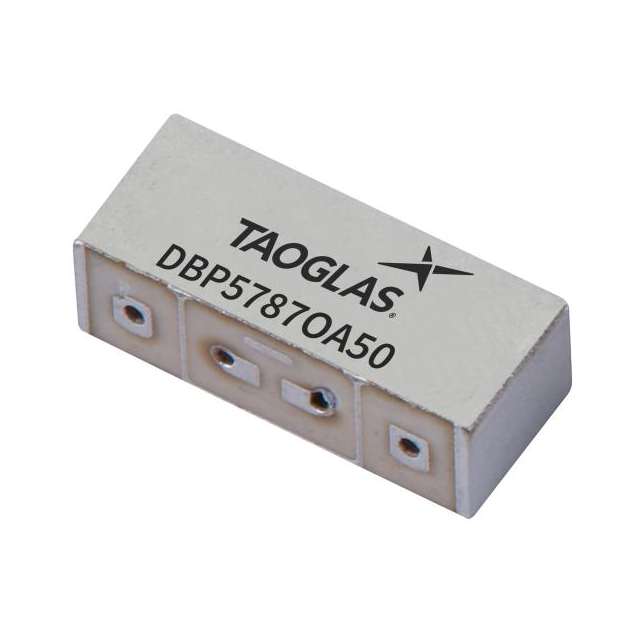

| Part Number | DBP.5570.N.A.60 | DBP.5200.X.A.50 | DBP.5200.X.A.60 | DBP.5787.O.A.50 |
| Manufacturer | Taoglas Limited | Taoglas Limited | Taoglas Limited | Taoglas Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF FILTER BAND PASS 5.57GHZ 2SMD | RF FILTER BAND PASS 5.2GHZ 2SMD | RF FILTER BAND PASS 5.2GHZ 2SMD | RF FILT BAND PASS 5.7875GHZ 2SMD |
| Series | Airvu | Airvu | Airvu | Airvu |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
