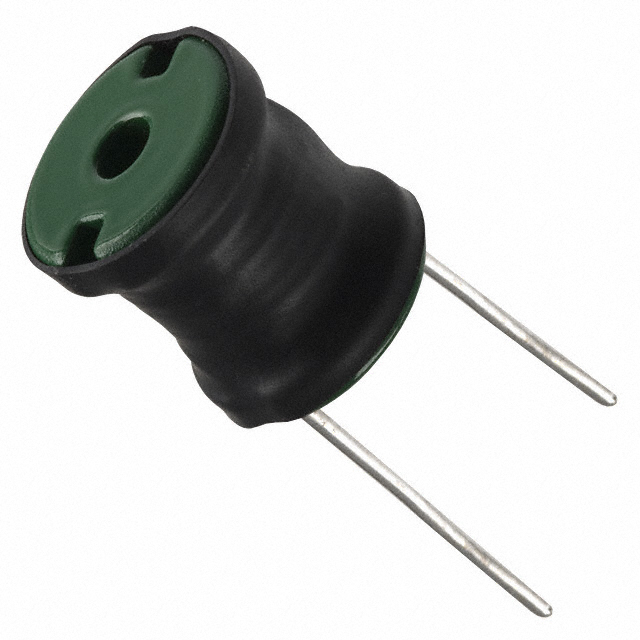

220 µH Unshielded Drum Core, Wirewound Inductor 2.8 A 150mOhm Max Radial, Vertical Cylinder
DC780R-224K
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Delevan |
| Series | DC780R |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 220 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 2.8 A |
| Current - Saturation (Isat) | 7.4A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 150mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.772" Dia (19.60mm) |
| Height - Seated (Max) | 0.831" (21.10mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |
| Part Number | DC780R-222L | DC780R-223K | DC780R-223K | DC780R-225K |
| Manufacturer | Delevan | Delevan | Delevan | Delevan |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 2.2UH 11.4A 4 MOHM TH | FIXED IND 22UH 7.2A 19 MOHM TH | FIXED IND 22UH 7.2A 19 MOHM TH | FIXED IND 2.2MH 800MA 1.54OHM TH |
| Series | Delevan | Delevan | Delevan | Delevan |
| Packaging | Bulk | Bulk | Bulk | Bulk |
