DCL540H01(T,E

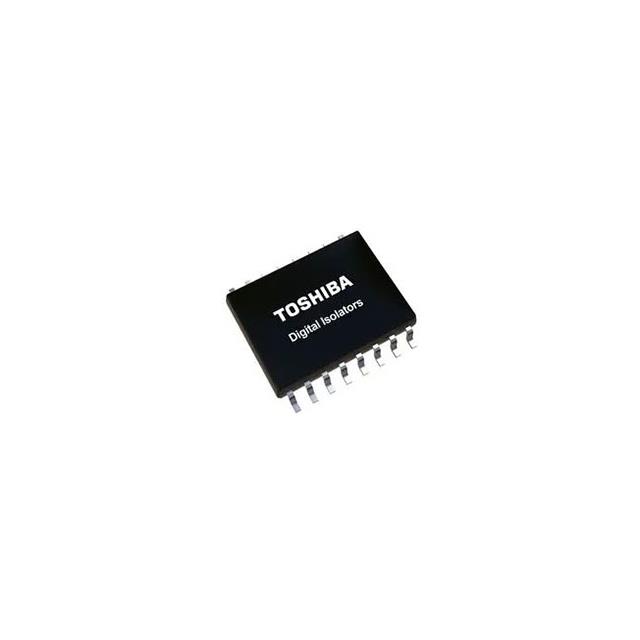

lmages are for reference only.DCL540H01(T,E
4-CH (4:0) HIGH SPEED DIGITAL IS
Datasheet16-SOIC (0.295", 7.50mm Width)
38,565 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Digital Isolator 5000Vrms 4 Channel 150Mbps 100kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
DCL540H01(T,E
| Category | Isolators - Digital Isolators - |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | DCL540x01 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Magnetic Coupling |
| Type | General Purpose |
| Isolated Power | Yes |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 4/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 100kV/µs |
| Data Rate | 150Mbps |
| Propagation Delay tpLH / tpHL (Max) | 18.3ns, 18.3ns |
| Pulse Width Distortion (Max) | 2.8ns |
| Rise / Fall Time (Typ) | 0.9ns, 0.9ns |
| Voltage - Supply | 2.25V ~ 5.5V |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | DCL540 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | DCL540C01(T,E | DCL540D01(T,E | DCL540L01(T,E | DCL541A01(T,E |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 4-CH (4:0) HIGH SPEED DIGITAL IS | 4-CH (4:0) HIGH SPEED DIGITAL IS | 4-CH (4:0) HIGH SPEED DIGITAL IS | 4-CH (3:1) HIGH SPEED DIGITAL IS |
| Series | DCL540x01 | DCL540x01 | DCL540x01 | DCL541x01 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
