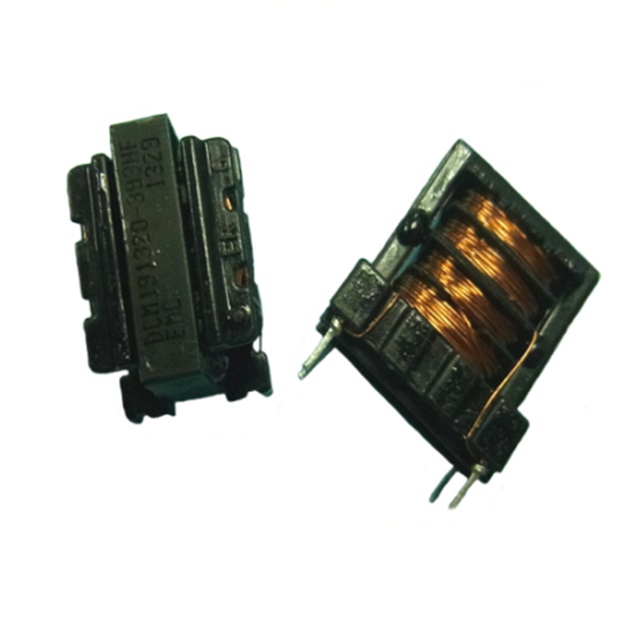

DCM191320V-393NHF
lmages are for reference only.DCM191320V-393NHF
39,000uH,2300mOhm,0.4Amp DIP CMC
DatasheetVertical, 4 PC Pin
46,129 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
39 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 400mA DCR 2.3Ohm
DCM191320V-393NHF
| Category | Filters - Common Mode Chokes - |
| Manufacturer | ITG Electronics, Inc. |
| Series | DCM191320V |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 39 mH @ 10 kHz |
| Current Rating (Max) | 400mA |
| DC Resistance (DCR) (Max) | 2.3Ohm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -55°C ~ 130°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.728" L x 0.512" W (18.50mm x 13.00mm) |
| Height (Max) | 0.787" (20.00mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | DCM191320V-153NHF | DCM191320V-273NHF | DCM191320V-352NHF | DCM191320V-473NHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | 15,000uH,960mOhm,0.63Amp DIP CMC | 27,000uH,1650mOhm,0.5Amp DIP CMC | 3,500uH, 230mOhm, 1.8Amp DIP CMC | 47,000uH,2750mOhm,0.35AmpDIP CMC |
| Series | DCM191320V | DCM191320V | DCM191320V | DCM191320V |
| Packaging | Bulk | Bulk | Bulk | Bulk |
