DCM321835V1-182NHF
lmages are for reference only.DCM321835V1-182NHF
1,800uH,36mOhm,6Amp Max. DIP CMC
DatasheetVertical, 4 PC Pin
78,107 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.8 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 6A DCR 36mOhm
DCM321835V1-182NHF
| Category | Filters - Common Mode Chokes - |
| Manufacturer | ITG Electronics, Inc. |
| Series | DCM321835V |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 1.8 mH @ 10 kHz |
| Current Rating (Max) | 6A |
| DC Resistance (DCR) (Max) | 36mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -55°C ~ 130°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.280" L x 0.728" W (32.50mm x 18.50mm) |
| Height (Max) | 1.398" (35.50mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

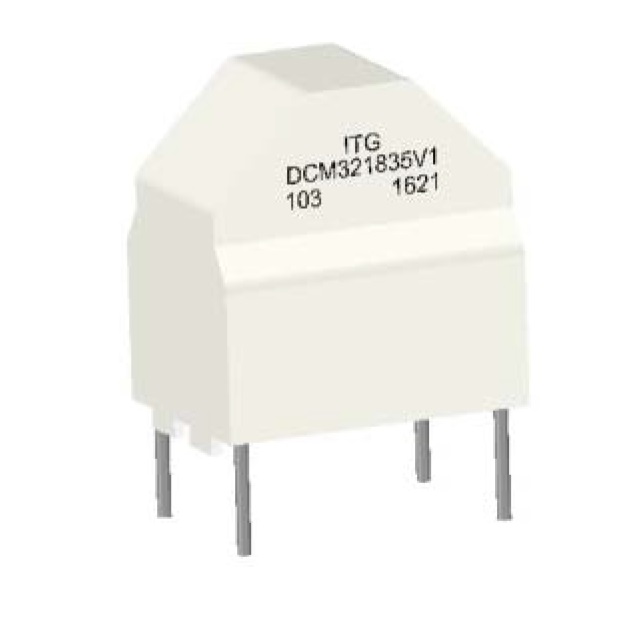

| Part Number | DCM321835V1-103NHF | DCM321835V1-273NHF | DCM321835V1-332NHF | DCM 321620F2SF-600T02-1R1 |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | TAI-TECH Advanced Electronics Co., Ltd. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | 10,000uH, 155mOhm, 3Amp DIP CMC | 27,000uH,400mOhm, 1.6Amp DIP CMC | 3,300uH,70mOhm,4Amp Max. DIP CMC | 60 UH @ 100 KHZ 2 LINE COMMON MO |
| Series | DCM321835V | DCM321835V | DCM321835V | DCM321620F2SF |
| Packaging | Bulk | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
