DCR011205U

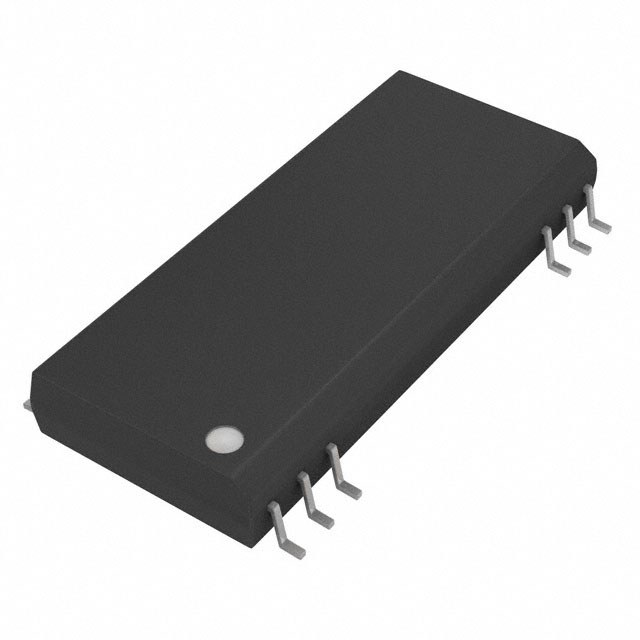

lmages are for reference only.DCR011205U
DC DC CONVERTER 5V 1W
Datasheet28-SOIC (0.295", 7.50mm Width), 12 Leads
15,558 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 200mA 10.8V - 13.2V Input
DCR011205U
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Texas Instruments |
| Series | DCR01 (1W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 200mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OTP, SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width), 12 Leads |
| Size / Dimension | 0.70" L x 0.41" W x 0.10" H (17.9mm x 10.3mm x 2.5mm) |
| Supplier Device Package | 12-SOP |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | DCR011205 |
| Voltage - Isolation | 1 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | DCR011205P | DCR011205U/1K | DCR011205UE4 | DCR011205UG4 |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 5V 1W | DC DC CONVERTER 5V 1W | MINIATURE, 1W ISOLATED REGULATED | DC DC CONVERTER 5V 1W |
| Series | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tube |
