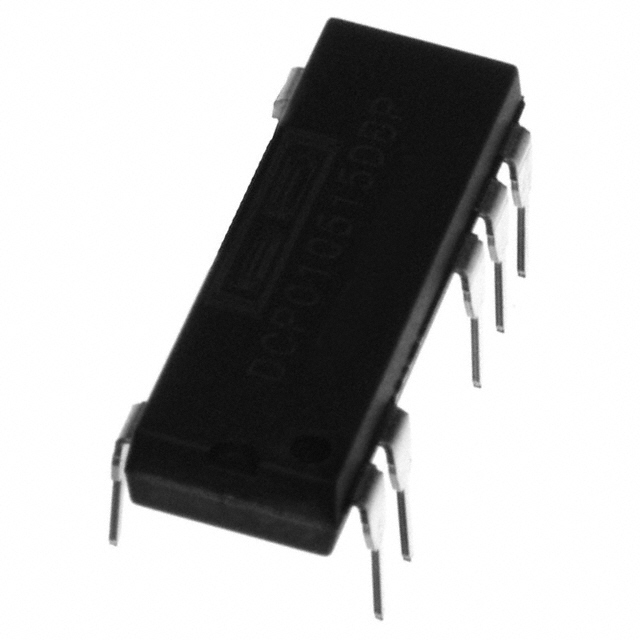

DCV011512DP
lmages are for reference only.DCV011512DP
DC DC CONVERTER +/-12V 1W
Datasheet14-DIP (0.300", 7.62mm), 7 Leads
21,658 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 12V -12V 41mA, 41mA 13.5V - 16.5V Input
DCV011512DP
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Burr Brown |
| Series | DCV01 (1W) |
| Packaging | Bulk |
| RoHS Status | |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 13.5V |
| Voltage - Input (Max) | 16.5V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 41mA, 41mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | OTP, SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 78% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm), 7 Leads |
| Size / Dimension | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) |
| Supplier Device Package | 7-PDIP |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | DCV011512 |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |

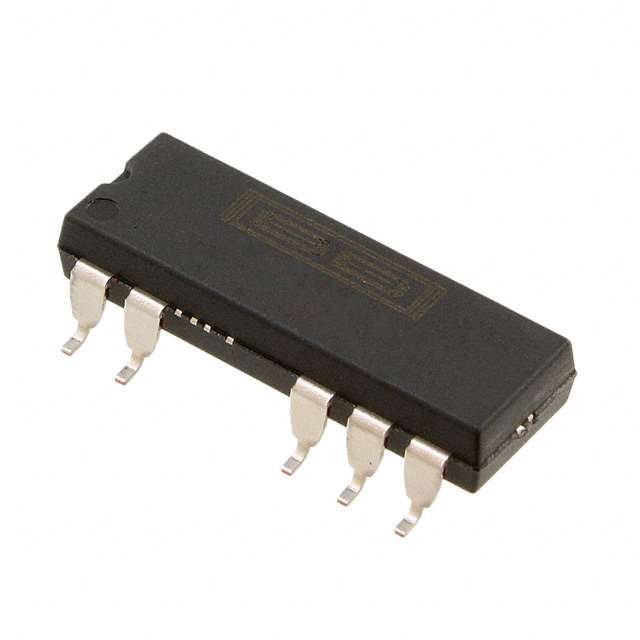

| Part Number | DCV011512DP | DCV011512DP-U | DCV011512DP-U/700 | DCV011515DP |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER +/-12V 1W | DC DC CONVERTER +/-12V 1W | DC DC CONVERTER +/-12V 1W | DC DC CONVERTER +/-15V 1W |
| Series | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
