Product CatalogPart Number
DD100KB80
Manufacturer
SanRex CorporationDescription
DIODE MODULE GEN PURP 800V 100A
Datasheet
DatasheetPackage
Module
In Stock
97,203 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DD100KB80
DD100KB80
lmages are for reference only.Payment Methods
Delivery Services
Diode Array 1 Pair Series Connection 800 V 100A Chassis Mount Module
Quick Inquiry
DD100KB80
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | SanRex Corporation |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Diode Configuration | 1 Pair Series Connection |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 800 V |
| Current - Average Rectified (Io) (per Diode) | 100A |
| Voltage - Forward (Vf) (Max) @ If | 1.35 V @ 320 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 30 mA @ 800 V |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | - |
| Base Product Number | - |
| Reverse Recovery Time (trr) | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |  | |  |

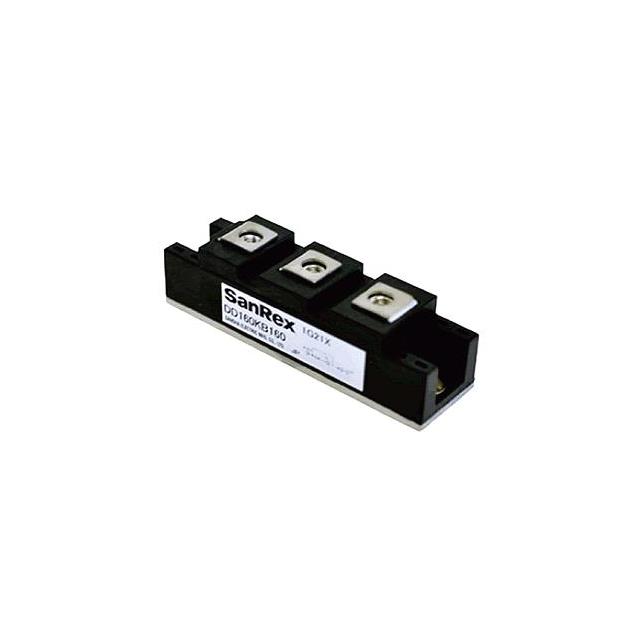

| Part Number | DD100KB160 | DD1000S33HE3B60BOSA1 | DD1000S33HE3BOSA1 | DD1000S33HE3BPSA1 |
| Manufacturer | SanRex Corporation | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE MODULE GEN PURP 1600V 100A | DIODE MODULE GP 3300V AGIHVB1303 | DIODE MODULE GP 3300V AGIHVB1303 | DIODE MODULE GP 3300V AGIHVB1303 |
| Series | - | - | - | - |
| Packaging | Tray | Tray | Tray | Tray |
