DESD12V0S1BL-7B

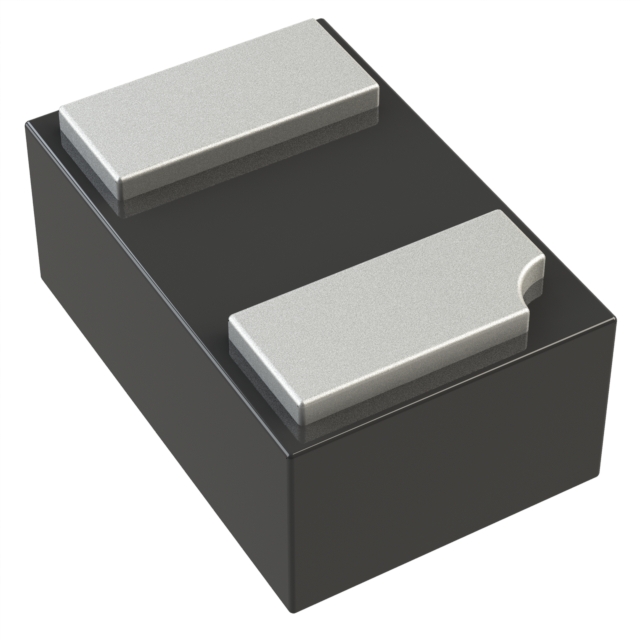

lmages are for reference only.DESD12V0S1BL-7B
TVS DIODE 12VWM 33.5VC DFN1006-2
Datasheet0402 (1006 Metric)
37,574 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
33.5V Clamp 9A (8/20µs) Ipp Tvs Diode Surface Mount X1-DFN1006-2
DESD12V0S1BL-7B
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 12V (Max) |
| Voltage - Breakdown (Min) | 15V |
| Voltage - Clamping (Max) @ Ipp | 33.5V |
| Current - Peak Pulse (10/1000µs) | 9A (8/20µs) |
| Power - Peak Pulse | 300W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | 20pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Supplier Device Package | X1-DFN1006-2 |
| Base Product Number | DESD12 |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute | |
|
|
|
| Part Number | DESD12V0S1BLQ-7B | DESD10V0X1BD2CSP-7 | DESD12VL1BAQ-7 | DESD12VL2BTQ-7 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DATALINE PROTECTION PP X1-DFN100 | DATALINE PROTECTION PP X2-WLB060 | DATALINE PROTECTION PP SOD323 T& | TRANSIENT VOLTAGE SUPPRESSOR PP |
| Series | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
