DESD5V0S1BLD-7B
lmages are for reference only.DESD5V0S1BLD-7B
TVS DIODE 5VWM 14VC DFN1006-2
Datasheet0402 (1006 Metric)
37,739 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
14V Clamp 12A (8/20µs) Ipp Tvs Diode Surface Mount X2-DFN1006-2
DESD5V0S1BLD-7B
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 5.5V |
| Voltage - Clamping (Max) @ Ipp | 14V |
| Current - Peak Pulse (10/1000µs) | 12A (8/20µs) |
| Power - Peak Pulse | 130W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 35pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Supplier Device Package | X2-DFN1006-2 |
| Base Product Number | DESD5 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

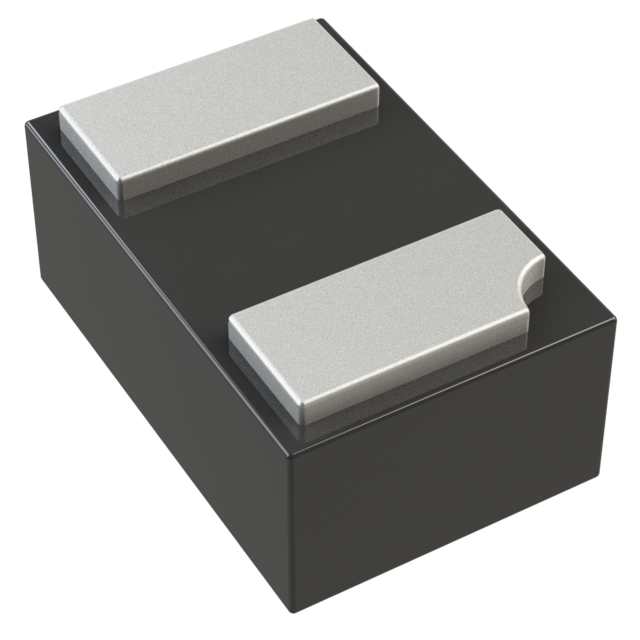

| Part Number | DESD5V0S1BA-7 | DESD5V0S1BAQ-7 | DESD5V0S1BB-7 | DESD5V0S1BL-7B |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 5VWM 14VC SOD323 | TVS DIODE 5VWM 14VC SOD323 | TVS DIODE 5VWM 14VC SOD523 | TVS DIODE 5VWM 14VC DFN1006-2 |
| Series | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
