DF04-G
lmages are for reference only.DF04-G
BRIDGE RECT 1PHASE 400V 1A 4-DF
Datasheet4-EDIP (0.321", 8.15mm)
62,257 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 400 V Through Hole 4-DF
DF04-G
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Comchip Technology |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 400 V |
| Current - Average Rectified (Io) | 1 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-EDIP (0.321", 8.15mm) |
| Supplier Device Package | 4-DF |
| Base Product Number | DF04 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

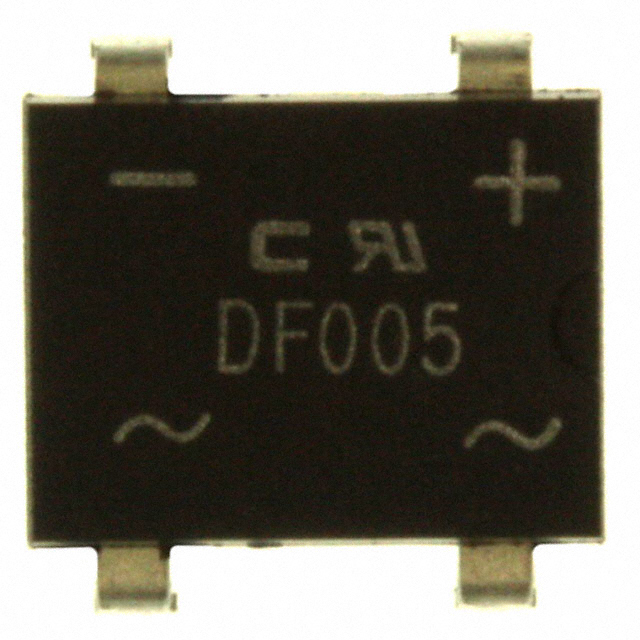

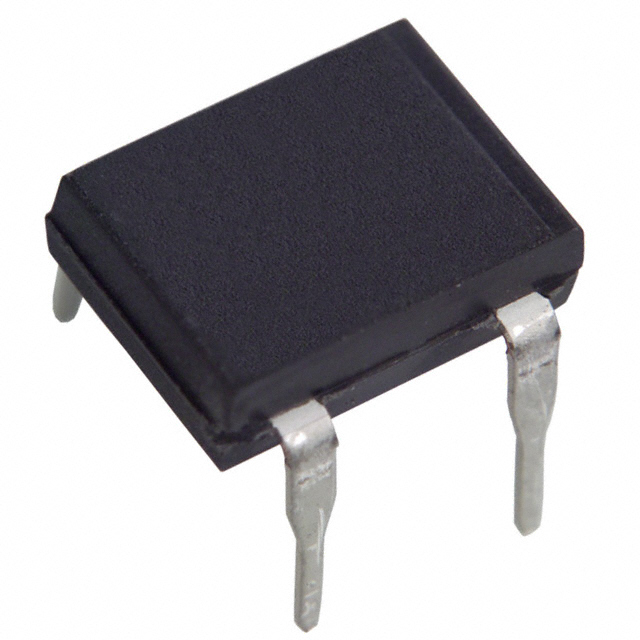

| Part Number | DF005-G | DF005M | DF005M | DF005M |
| Manufacturer | Comchip Technology | Fairchild Semiconductor | Diodes Incorporated | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | BRIDGE RECT 1PHASE 50V 1A 4-DF | BRIDGE RECTIFIER DIODE, 1 PHASE, | BRIDGE RECT 1PHASE 50V 1A DFM | BRIDGE RECT 1PHASE 50V 1.5A 4DIP |
| Series | - | - | - | - |
| Packaging | Tube | Bulk | Tube | Tube |
