Product CatalogPart Number
DF13B-10P-1.25V(20)
Manufacturer
Hirose Electric Co LtdDescription
CONN HEADER SMD 10POS 1.25MM
Datasheet
DatasheetPackage
-
In Stock
26,400 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DF13B-10P-1.25V(20)
.jpg "DF13B-10P-1.25V(20)")
DF13B-10P-1.25V(20)
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Surface Mount 10 position 0.049" (1.25mm)
Quick Inquiry
DF13B-10P-1.25V(20)
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Hirose Electric Co Ltd |
| Series | DF13 |
| Packaging | Tube |
| RoHS Status | |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.189" (4.80mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Board Guide, Solder Retention |
| Operating Temperature | -35°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Beige |
| Current Rating (Amps) | 1A |
| Voltage Rating | 150V |
| Mated Stacking Heights | 5.8mm |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | DF13B |
Parts with Similar Specifications
| Product Attribute | .jpg "DF13B-10P-1.25V(21)") |
.jpg "DF13B-10P-1.25V(50)") |

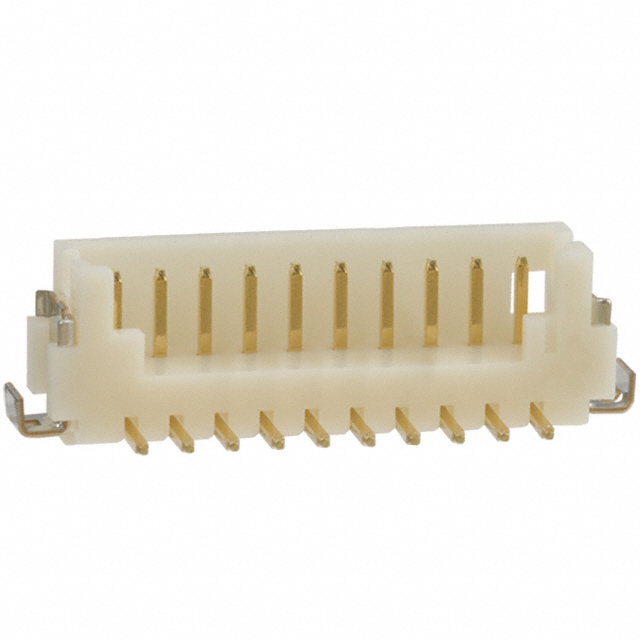

.jpg "DF13B-10P-1.25V(51)") |

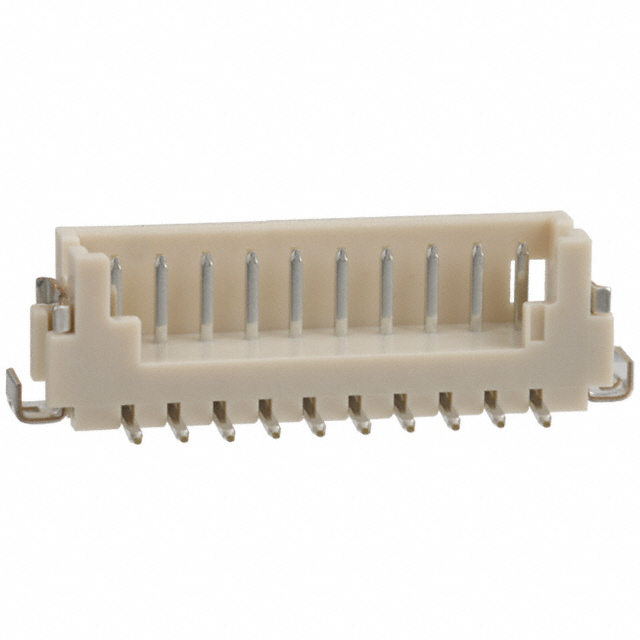

.jpg "DF13B-10P-1.25V(75)") |
| Part Number | DF13B-10P-1.25V(21) | DF13B-10P-1.25V(50) | DF13B-10P-1.25V(51) | DF13B-10P-1.25V(75) |
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | CONN HEADER SMD 10POS 1.25MM | CONN HEADER SMD 10POS 1.25MM | CONN HEADER SMD 10POS 1.25MM | CONN HEADER SMD 10POS 1.25MM |
| Series | DF13 | DF13 | DF13 | DF13 |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
Customers Also Interested in
Recommended Products
DF13B-10P-1.25V(21)
Hirose Electric Co Ltd
DF13B-10P-1.25V(50)
Hirose Electric Co Ltd
DF13B-10P-1.25V(51)
Hirose Electric Co Ltd
DF13B-10P-1.25V(75)
Hirose Electric Co Ltd
DF13B-10P-1.25V(77)
Hirose Electric Co Ltd

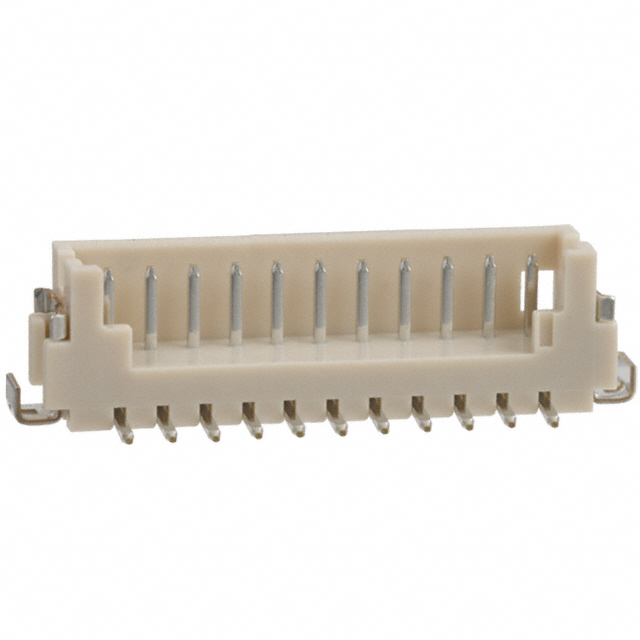

.jpg "DF13B-11P-1.25V(21)")
DF13B-11P-1.25V(21)
Hirose Electric Co Ltd
.jpg "DF13B-12P-1.25V(20)")
DF13B-12P-1.25V(20)
Hirose Electric Co Ltd

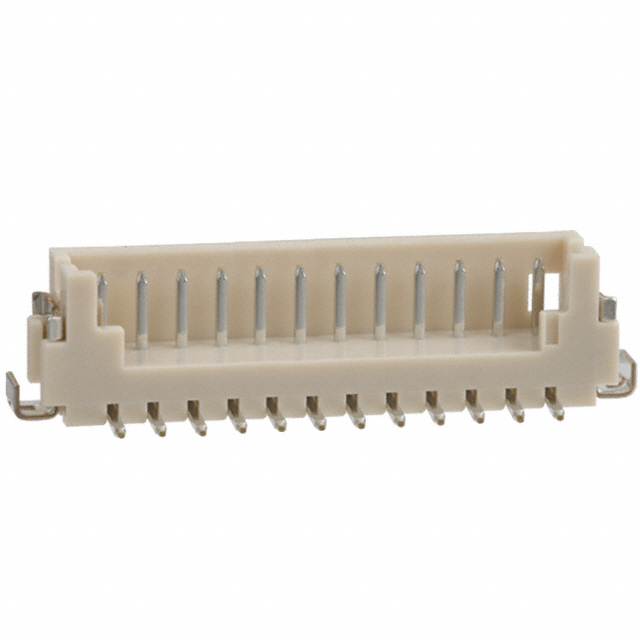

.jpg "DF13B-12P-1.25V(21)")
DF13B-12P-1.25V(21)
Hirose Electric Co Ltd

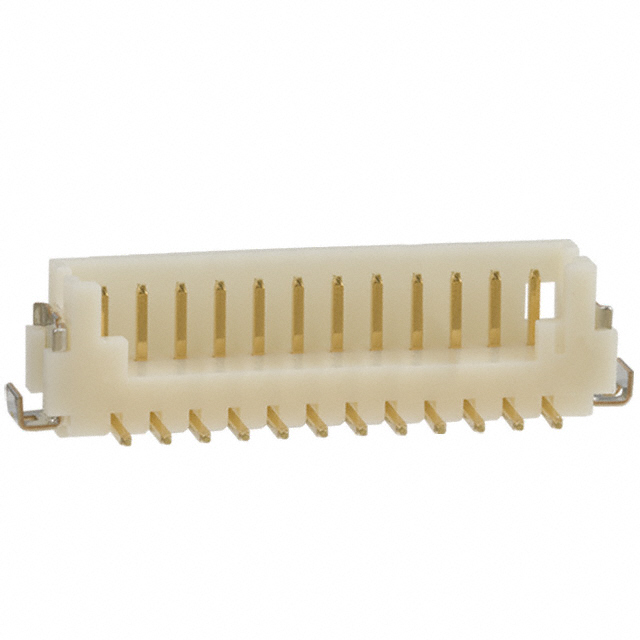

.jpg "DF13B-12P-1.25V(50)")
DF13B-12P-1.25V(50)
Hirose Electric Co Ltd
.jpg "DF13B-12P-1.25V(51)")
DF13B-12P-1.25V(51)
Hirose Electric Co Ltd
DF13B-12P-1.25V(76)
Hirose Electric Co Ltd

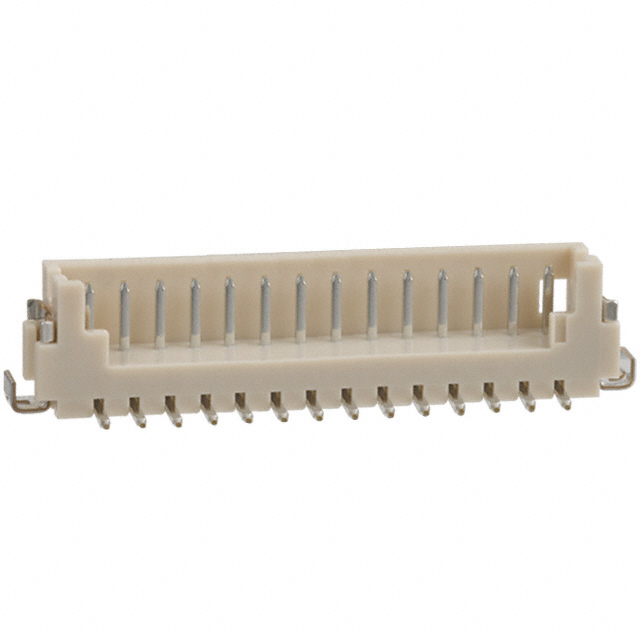

.jpg "DF13B-14P-1.25V(20)")
DF13B-14P-1.25V(20)
Hirose Electric Co Ltd
.jpg "DF13B-14P-1.25V(21)")
DF13B-14P-1.25V(21)
Hirose Electric Co Ltd
.jpg "DF13B-14P-1.25V(50)")
DF13B-14P-1.25V(50)
Hirose Electric Co Ltd
DF13B-14P-1.25V(75)
Hirose Electric Co Ltd

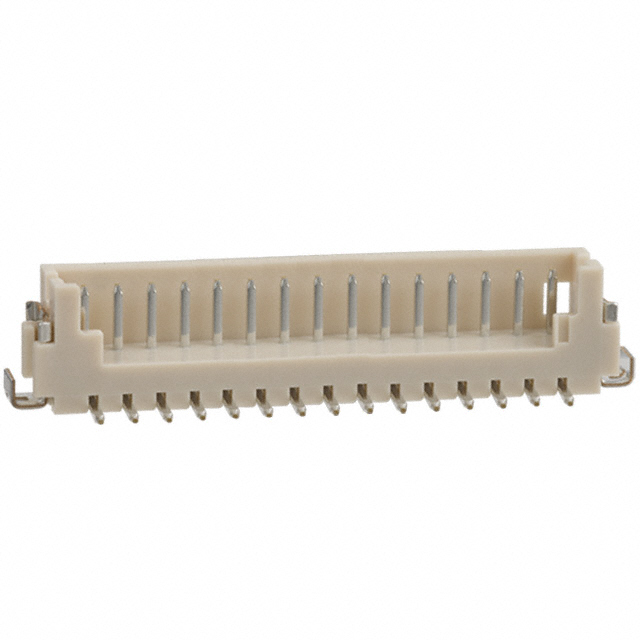

.jpg "DF13B-15P-1.25V(20)")
DF13B-15P-1.25V(20)
Hirose Electric Co Ltd
.jpg "DF13B-15P-1.25V(21)")
DF13B-15P-1.25V(21)
Hirose Electric Co Ltd

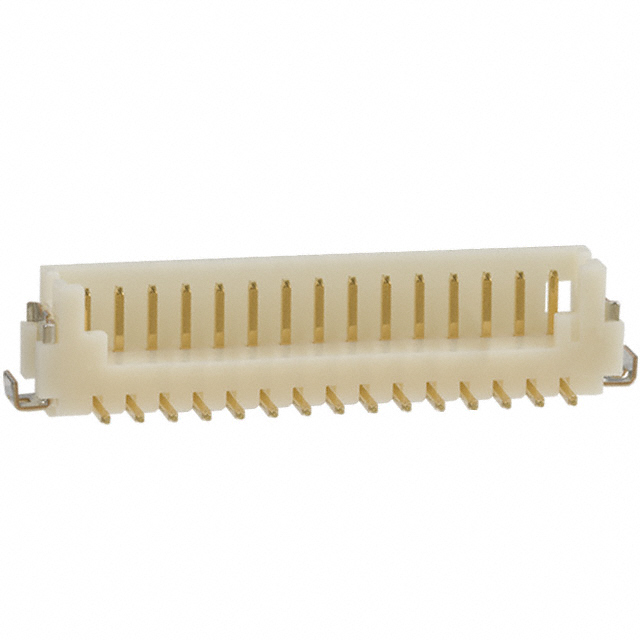

.jpg "DF13B-15P-1.25V(50)")
