DF15005M
lmages are for reference only.DF15005M
BRIDGE RECT 1PHASE 50V 1.5A DFM
Datasheet4-EDIP (0.300", 7.62mm)
59,512 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 50 V Through Hole DFM
DF15005M
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 50 V |
| Current - Average Rectified (Io) | 1.5 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 50 V |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-EDIP (0.300", 7.62mm) |
| Supplier Device Package | DFM |
| Base Product Number | DF15005 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

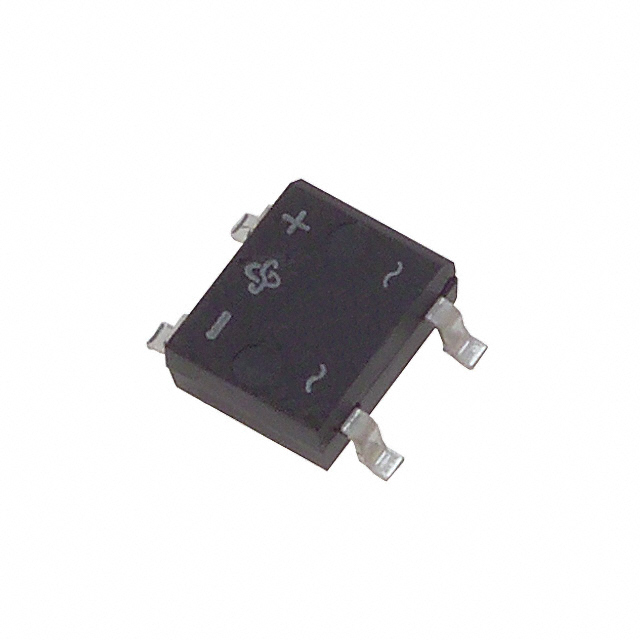

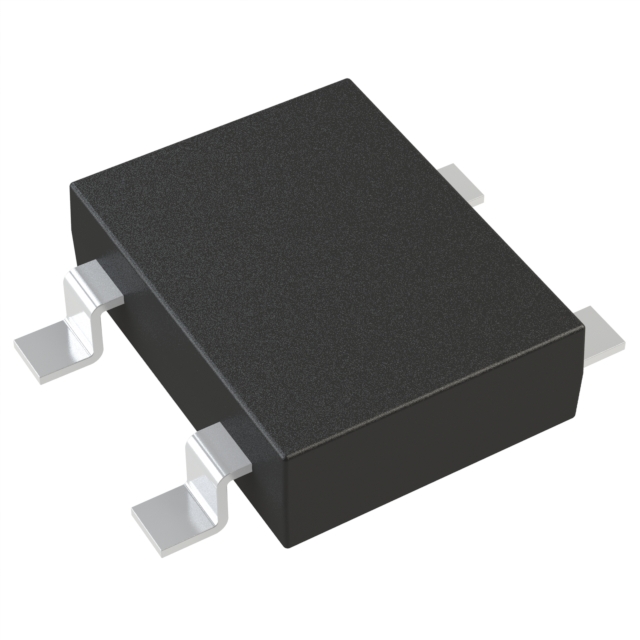

| Part Number | DF15005S | DF15005S-E3/45 | DF15005S-E3/77 | DF15005S-G |
| Manufacturer | Diodes Incorporated | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BRIDGE RECT 1PHASE 50V 1.5A DF-S | BRIDGE RECT 1PHASE 50V 1.5A DFS | BRIDGE RECT 1PHASE 50V 1.5A DFS | BRIDGE RECT 1PHASE 50V 1.5A DFS |
| Series | - | - | - | - |
| Packaging | Bulk | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
