DF1510M

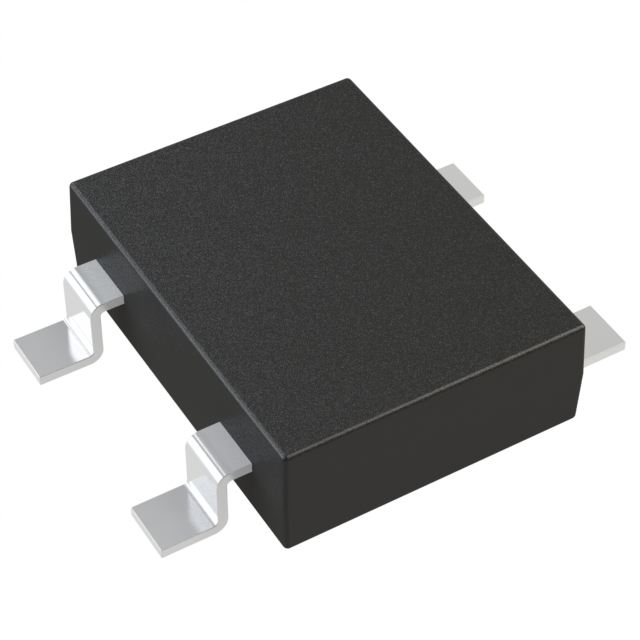

lmages are for reference only.DF1510M
BRIDGE RECT 1PHASE 1KV 1.5A DFM
Datasheet4-EDIP (0.300", 7.62mm)
80,190 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 1 kV Through Hole DFM
DF1510M
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 1.5 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 1000 V |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-EDIP (0.300", 7.62mm) |
| Supplier Device Package | DFM |
| Base Product Number | DF1510 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|
| Part Number | DF1510 | DF1510S | DF1510S | DF1510S |
| Manufacturer | HY Electronic (Cayman) Limited | Good-Ark Semiconductor | Diodes Incorporated | HY Electronic (Cayman) Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | GLASS PASSIVATED BRIDGE RECTIFIE | BRIDGE RECTIFIER, GENERAL PURPOS | BRIDGE RECT 1PHASE 1KV 1.5A DF-S | GLASS PASSIVATED BRIDGE RECTIFIE |
| Series | DF | - | - | DF |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tube |
