Product CatalogPart Number
DF1E-5P-2.5DS(36)
Manufacturer
Hirose Electric Co LtdDescription
CONN HEADER R/A 5POS 2.5MM
Datasheet
DatasheetPackage
-
In Stock
24,750 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DF1E-5P-2.5DS(36)
DF1E-5P-2.5DS(36)
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole, Right Angle 5 position 0.098" (2.50mm)
Quick Inquiry
DF1E-5P-2.5DS(36)
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Hirose Electric Co Ltd |
| Series | DF1E |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | - |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | 0.177" (4.50mm) |
| Contact Length - Post | 0.114" (2.90mm) |
| Overall Contact Length | - |
| Insulation Height | 0.315" (8.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | - |
| Operating Temperature | -35°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | DF1E |
Parts with Similar Specifications
| Product Attribute | |
.jpg "DF1E-5P-2.5DS(05)") |

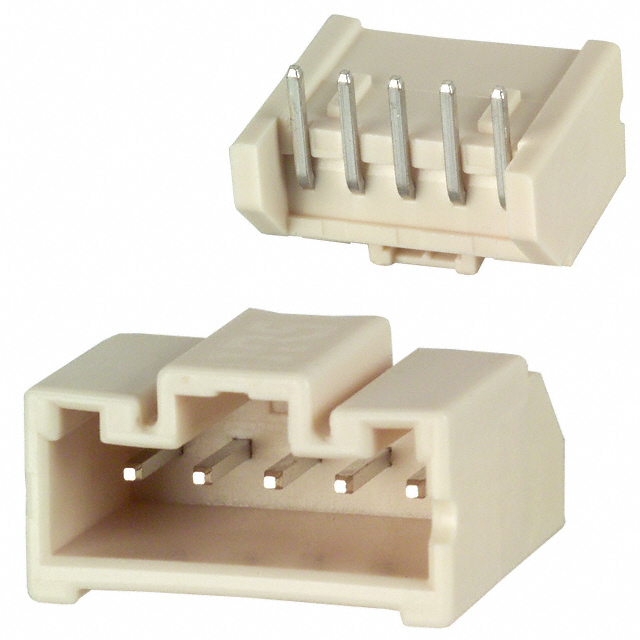

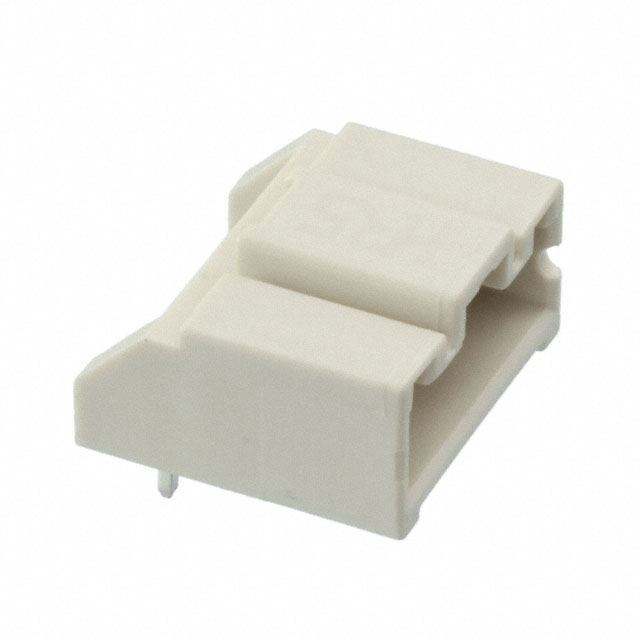

.jpg "DF1E-5P-2.5DS(35)") |
 |
