DF2005-G
lmages are for reference only.DF2005-G
BRIDGE RECT 1PHASE 50V 2A 4-DF
Datasheet4-EDIP (0.321", 8.15mm)
42,437 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 50 V Through Hole 4-DF
DF2005-G
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Comchip Technology |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 50 V |
| Current - Average Rectified (Io) | 2 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 2 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 50 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-EDIP (0.321", 8.15mm) |
| Supplier Device Package | 4-DF |
| Base Product Number | DF2005 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

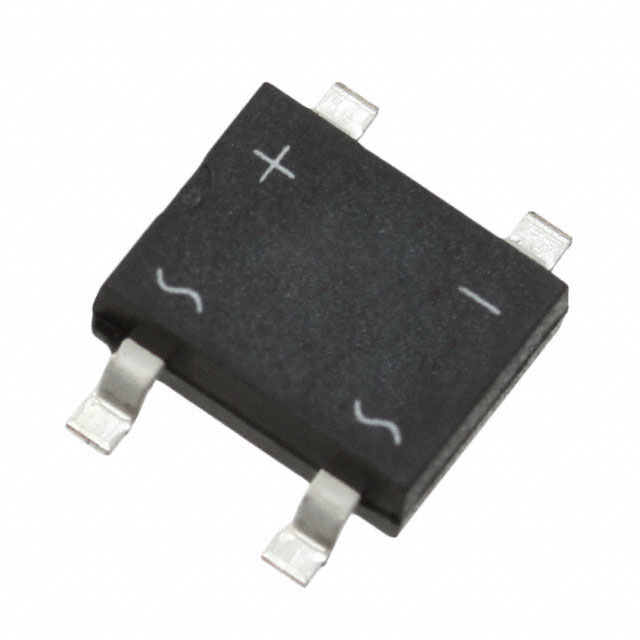

| Part Number | DF2005S-G | DF2005SP-G | DF2005ST-G | DF2006S |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | Good-Ark Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | BRIDGE RECT 1PHASE 50V 2A DFS | BRIDGE RECT 1PHASE 50V 2A DFS | BRIDGE RECT 1PHASE 50V 2A DFS | BRIDGE RECTIFIER, GENERAL PURPOS |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
