DF2148BFA20IV

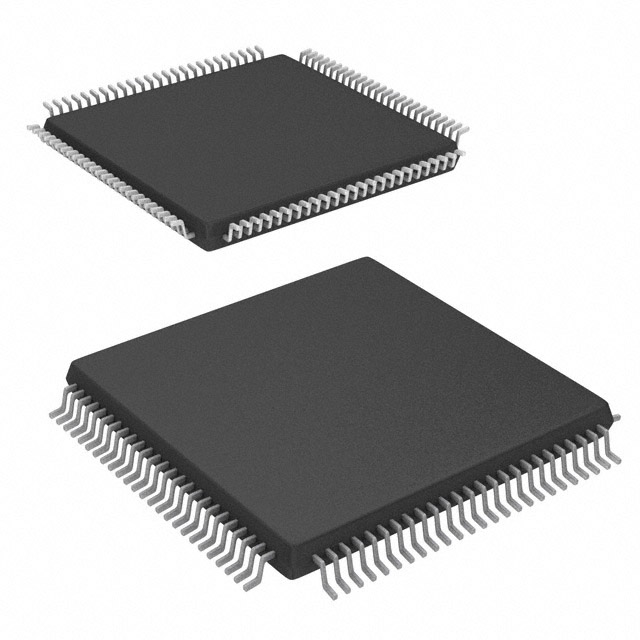

lmages are for reference only.DF2148BFA20IV
IC MCU 16BIT 128KB FLASH 100QFP
Datasheet100-BFQFP
36,403 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
H8S/2000 H8® H8S/2100 Microcontroller IC 16-Bit 20MHz 128KB (128K x 8) FLASH 100-QFP (14x14)
DF2148BFA20IV
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Renesas Electronics Corporation |
| Series | H8® H8S/2100 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Core Processor | H8S/2000 |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | I2C, IrDA, SCI, X-Bus |
| Peripherals | PWM, WDT |
| Number of I/O | 74 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-QFP (14x14) |
| Package / Case | 100-BFQFP |
| Base Product Number | DF2148 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | DF2148BFA20V | DF2148BTE20V | DF2148BVFA10V | DF2148BVTE10V |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MCU 16BIT 128KB FLASH 100QFP | IC MCU 16BIT 128KB FLASH 100TQFP | IC MCU 16BIT 128KB FLASH 100QFP | IC MCU 16BIT 128KB FLASH 100TQFP |
| Series | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| Packaging | Tray | Tray | Tray | Tray |
