DF2B12M4SL,L3F
lmages are for reference only.DF2B12M4SL,L3F
TVS DIODE 11VWM 22VC SL2
Datasheet2-SMD, No Lead
56,843 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SL2
DF2B12M4SL,L3F
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 11V (Max) |
| Voltage - Breakdown (Min) | 11.5V |
| Voltage - Clamping (Max) @ Ipp | 22V |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Power - Peak Pulse | 22W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 0.2pF @ 1MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Supplier Device Package | SL2 |
| Base Product Number | DF2B12 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute | .jpg "DF2B12M1CT(TPL3)") |
 |
 |
|

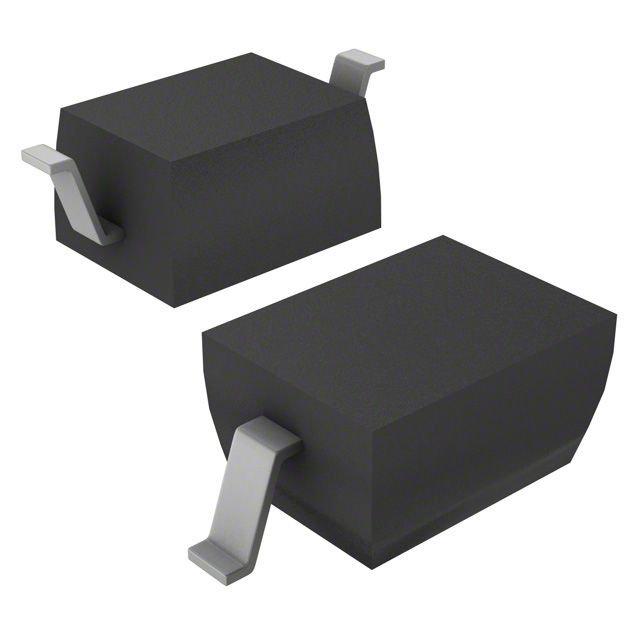

| Part Number | DF2B12M1CT(TPL3) | DF2B12M2SC,L3F | DF2B18FU,H3F | DF2B18FU,H3XHF |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 8VWM 18VC CST2 | TVS DIODE 8VWM 18VC SC2 | TVS DIODE 12VWM 33VC USC | AUTO AEC-Q BIDIRECTIONAL ESD PRO |
| Series | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
