DF2S5.6ASL,L3F
lmages are for reference only.DF2S5.6ASL,L3F
TVS DIODE 3.5VWM SL2
Datasheet2-SMD, No Lead
29,833 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Clamp Ipp Tvs Diode Surface Mount SL2
DF2S5.6ASL,L3F
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 3.5V (Max) |
| Voltage - Breakdown (Min) | 5.3V |
| Voltage - Clamping (Max) @ Ipp | - |
| Current - Peak Pulse (10/1000µs) | - |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 40pF @ 1MHz |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Supplier Device Package | SL2 |
| Base Product Number | DF2S5.6 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
 |
 |

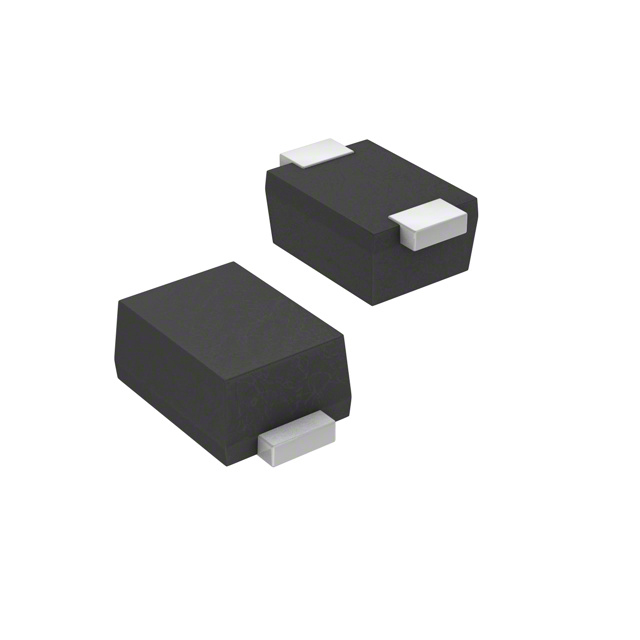

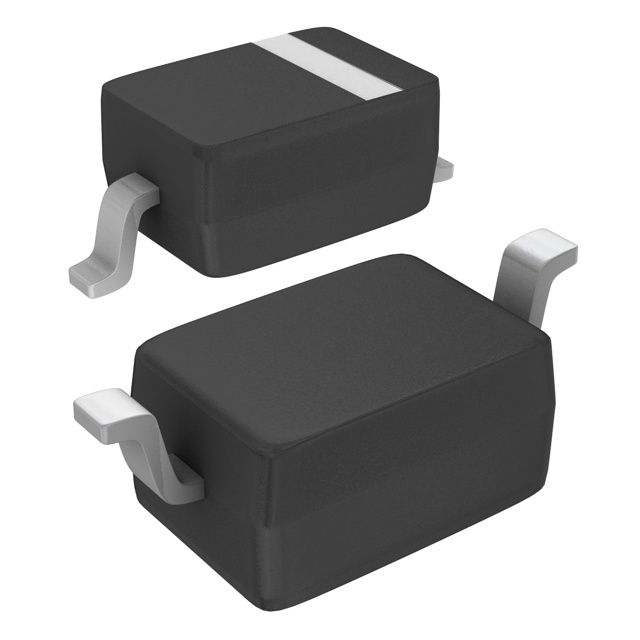

| Part Number | DF2S10FS,L3M | DF2S12ASL,L3F | DF2S12FS,L3M | DF2S12FU,H3F |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 8VWM FSC | SOD-962 VRMW 9V 1UA TVS DIODES | TVS DIODE 9VWM 18.5VC SOD923 | TVS DIODE 9VWM USC |
| Series | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
