DF2S6M5SL,L3F
lmages are for reference only.DF2S6M5SL,L3F
TVS DIODE 5VWM 17VC SL2
Datasheet2-SMD, No Lead
47,321 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
17V (Typ) Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount SL2
DF2S6M5SL,L3F
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 5.5V |
| Voltage - Clamping (Max) @ Ipp | 17V (Typ) |
| Current - Peak Pulse (10/1000µs) | 2.5A (8/20µs) |
| Power - Peak Pulse | 37W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 0.6pF @ 1MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Supplier Device Package | SL2 |
| Base Product Number | DF2S6 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
.jpg "DF2B12M1CT(TPL3)") |
 |
| Part Number | DF2S6M5CT,L3F | DF2S6M5CT,L3F | DF2B12M1CT(TPL3) | DF2B12M2SC,L3F |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | |
| Description | UNIDIRECTIONAL ESD DIODE VRWM:5. | TVS DIODE 19VWM CST2 | TVS DIODE 8VWM 18VC CST2 | TVS DIODE 8VWM 18VC SC2 |
| Series | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Recommended Products

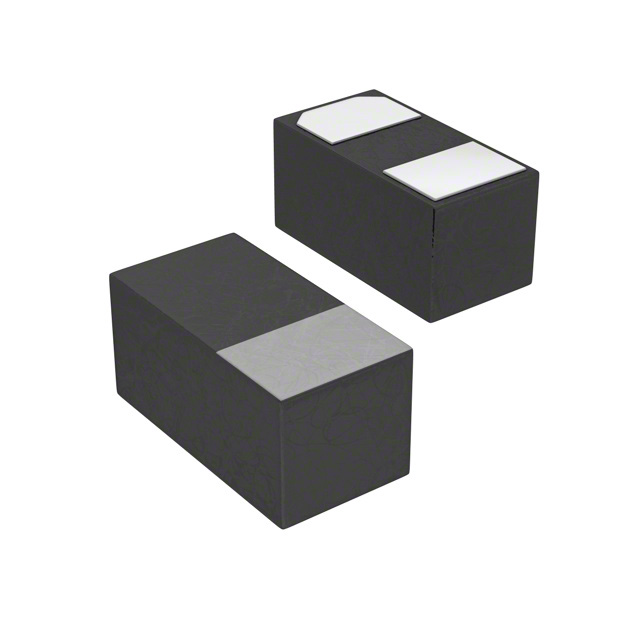

.jpg "DF2S6.8SC(TPL3)")

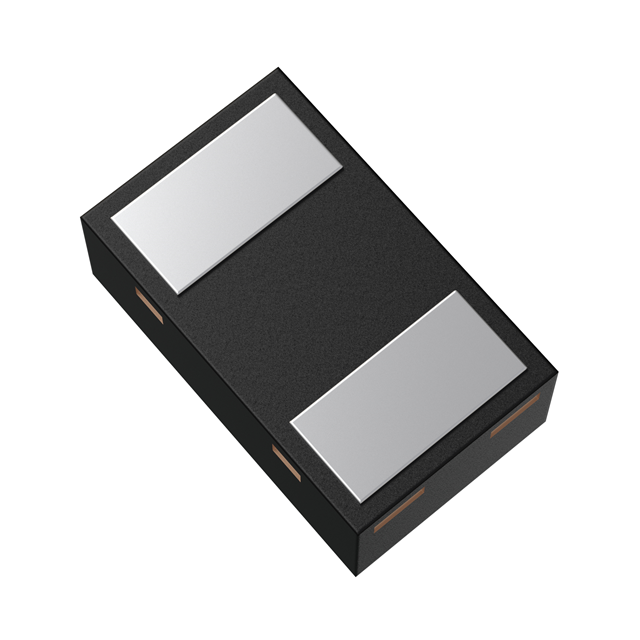

.jpg "DF2S6.8UCT(TPL3)")
