DF3A5.6LFV(TPL3,Z)
lmages are for reference only.DF3A5.6LFV(TPL3,Z)
TVS DIODE 3.5VWM VESM
DatasheetSOT-723
74,237 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Clamp Ipp Tvs Diode Surface Mount VESM
DF3A5.6LFV(TPL3,Z)
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 3.5V |
| Voltage - Breakdown (Min) | 5.3V |
| Voltage - Clamping (Max) @ Ipp | - |
| Current - Peak Pulse (10/1000µs) | - |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 8pF @ 1MHz |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-723 |
| Supplier Device Package | VESM |
| Base Product Number | DF3A5.6 |
| Unidirectional Channels | 2 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |

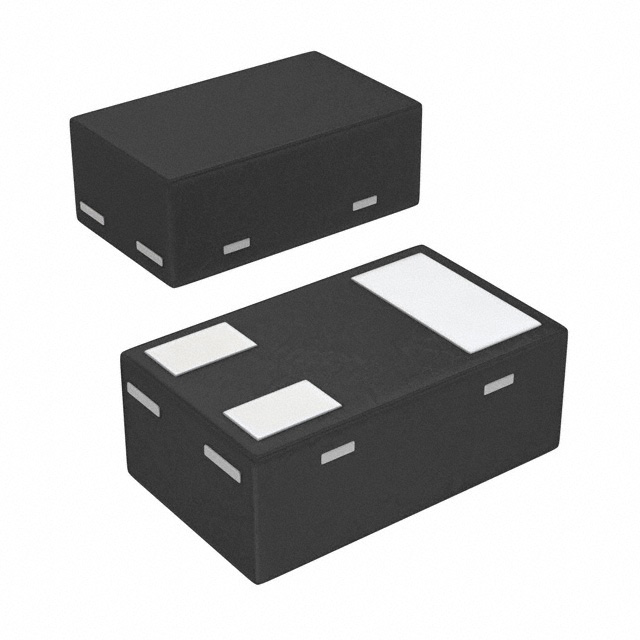

.jpg "DF3A3.3CT(TPL3)") |

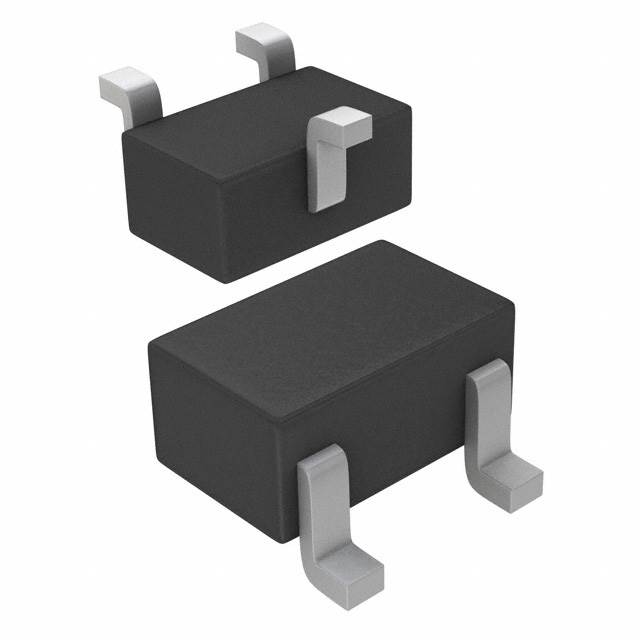

.jpg "DF3A3.3FU(TE85L,F)") |
 |

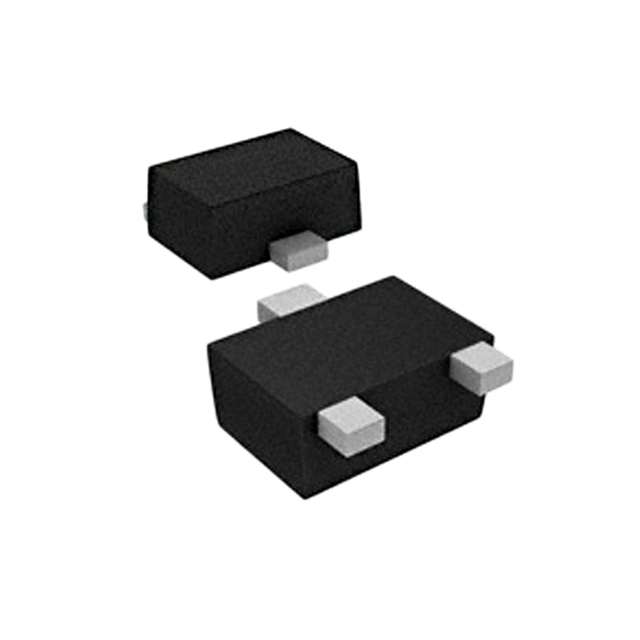

| Part Number | DF3A5.6LFU,LF | DF3A3.3CT(TPL3) | DF3A3.3FU(TE85L,F) | DF3A3.3FV,L3F |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS non-compliant |
| Description | TVS DIODE 3.5VWM USM | TVS DIODE 1VWM CST3 | TVS DIODE 1VWM USM | TVS DIODE VESM |
| Series | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
