Product CatalogPart Number
DF3E-4P-2V(24)
Manufacturer
Hirose Electric Co LtdDescription
CONN HEADER SMD 4POS 2MM
Datasheet
DatasheetPackage
-
In Stock
25,275 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DF3E-4P-2V(24)
.jpg "DF3E-4P-2V(24)")
DF3E-4P-2V(24)
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Surface Mount 4 position 0.079" (2.00mm)
Quick Inquiry
DF3E-4P-2V(24)
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Hirose Electric Co Ltd |
| Series | DF3 |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.232" (5.90mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Board Guide, Solder Retention |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 250VAC |
| Mated Stacking Heights | 8.4mm |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Applications | - |
| Base Product Number | DF3E |
Parts with Similar Specifications
| Product Attribute | .jpg "DF3E-4P-2V(20)") |
.jpg "DF3E-4P-2V(21)") |
.jpg "DF3E-4P-2V(50)") |
.jpg "DF3E-4P-2V(51)") |

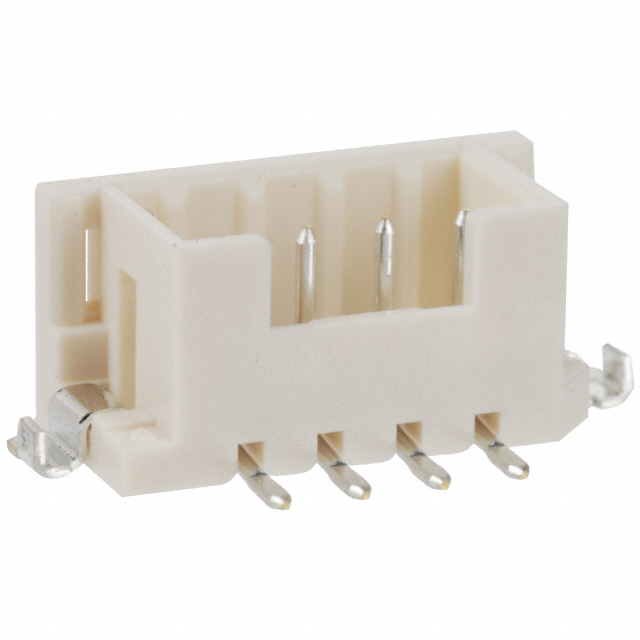

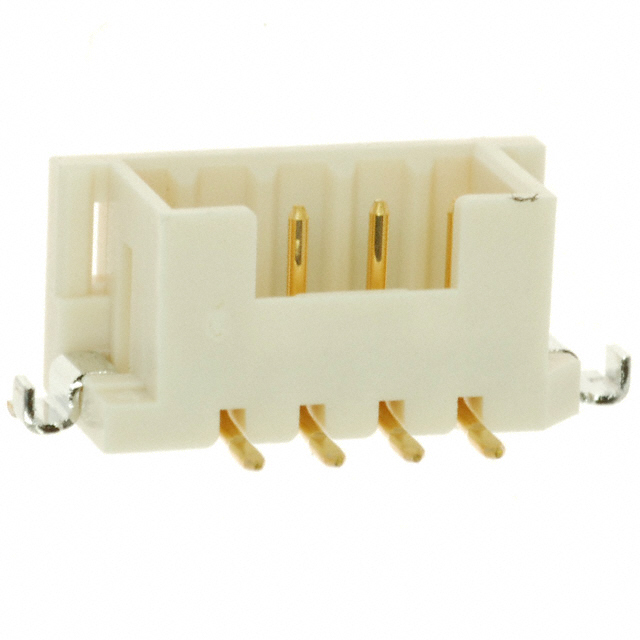

| Part Number | DF3E-4P-2V(20) | DF3E-4P-2V(21) | DF3E-4P-2V(50) | DF3E-4P-2V(51) |
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ||
| Description | CONN HEADER SMD 4POS 2MM | CONN HEADER SMD 4POS 2MM | CONN HEADER SMD 4POS 2MM | CONN HEADER SMD 4POS 2MM |
| Series | DF3 | DF3 | DF3 | DF3 |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
.jpg "DF3E-10P-2H(20)")

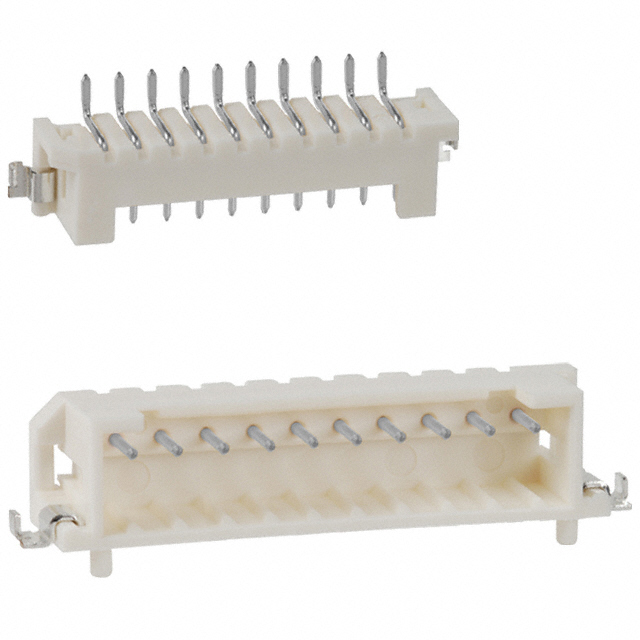

DF3E-10P-2H(20)
Hirose Electric Co Ltd
.jpg "DF3E-10P-2H(21)")
DF3E-10P-2H(21)
Hirose Electric Co Ltd
.jpg "DF3E-10P-2H(24)")
DF3E-10P-2H(24)
Hirose Electric Co Ltd
DF3E-10P-2H(54)
Hirose Electric Co Ltd
.jpg "DF3E-10P-2V(21)")

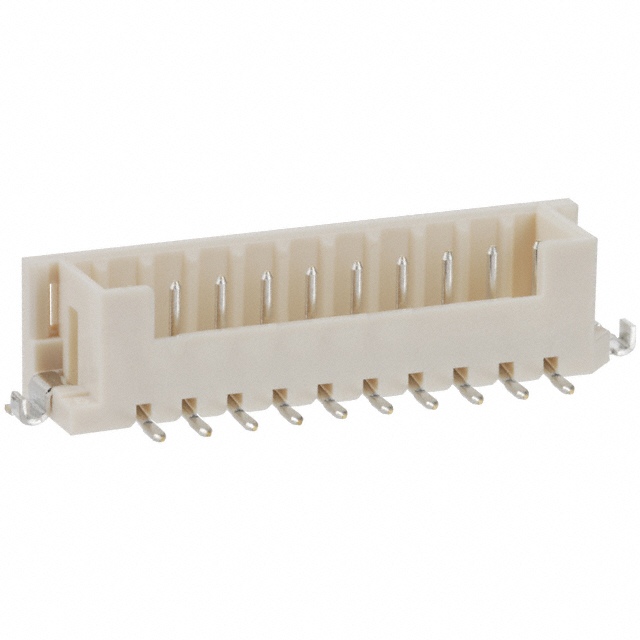

DF3E-10P-2V(21)
Hirose Electric Co Ltd
DF3E-10P-2V(24)
Hirose Electric Co Ltd
DF3E-10P-2V(51)
Hirose Electric Co Ltd
DF3E-10P-2V(54)
Hirose Electric Co Ltd
.jpg "DF3E-11P-2V(21)")

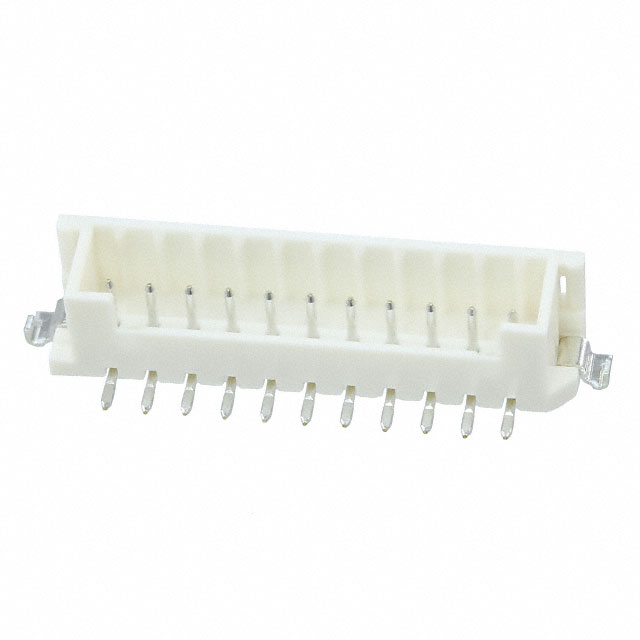

DF3E-11P-2V(21)
Hirose Electric Co Ltd

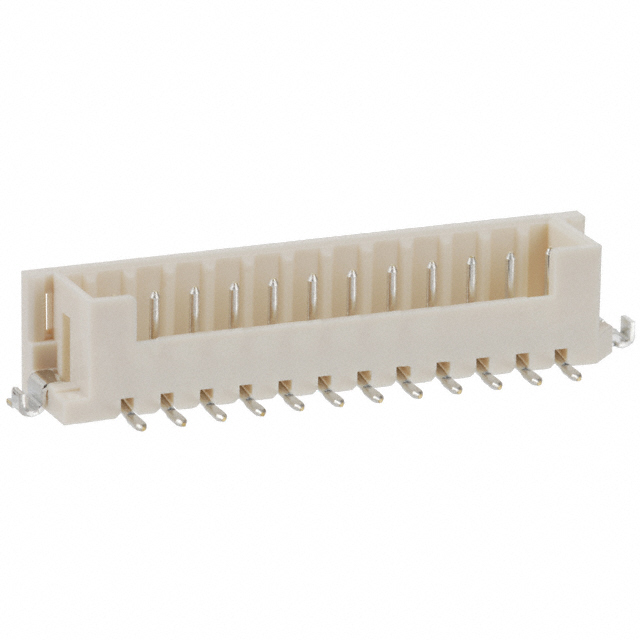

.jpg "DF3E-12P-2V(24)")
DF3E-12P-2V(24)
Hirose Electric Co Ltd
.jpg "DF3E-12P-2V(50)")

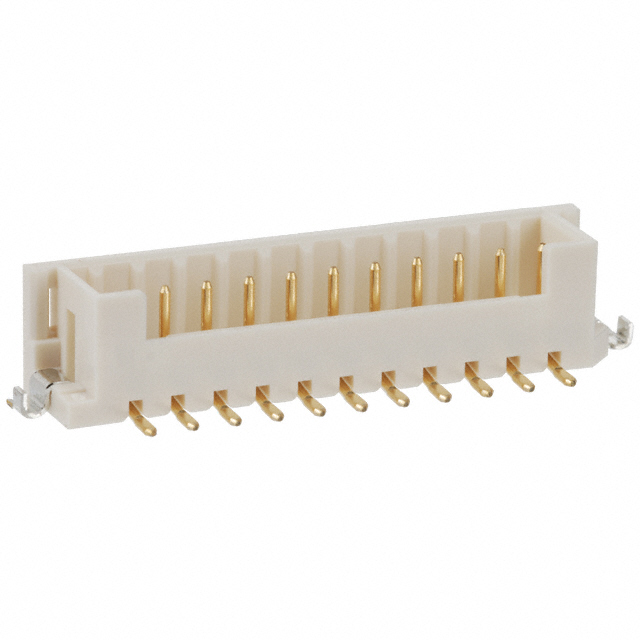

DF3E-12P-2V(50)
Hirose Electric Co Ltd

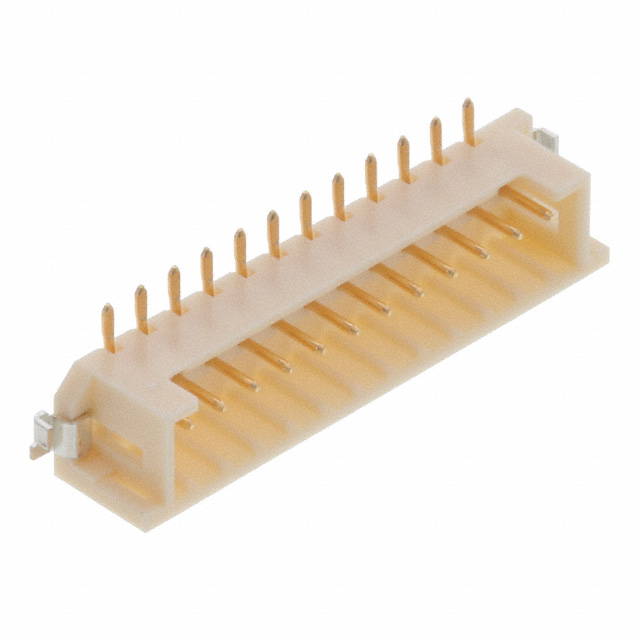

.jpg "DF3E-12P-2V(54)")
DF3E-12P-2V(54)
Hirose Electric Co Ltd
DF3E-14P-2H(24)
Hirose Electric Co Ltd

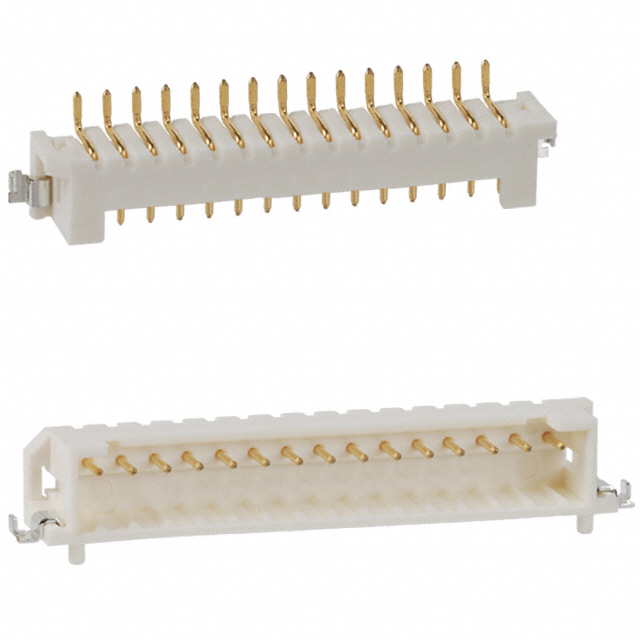

.jpg "DF3E-15P-2H(51)")
DF3E-15P-2H(51)
Hirose Electric Co Ltd
DF3E-15P-2V(54)
Hirose Electric Co Ltd
.jpg "DF3E-2P-2H(20)")
DF3E-2P-2H(20)
Hirose Electric Co Ltd
.jpg "DF3E-2P-2H(21)")

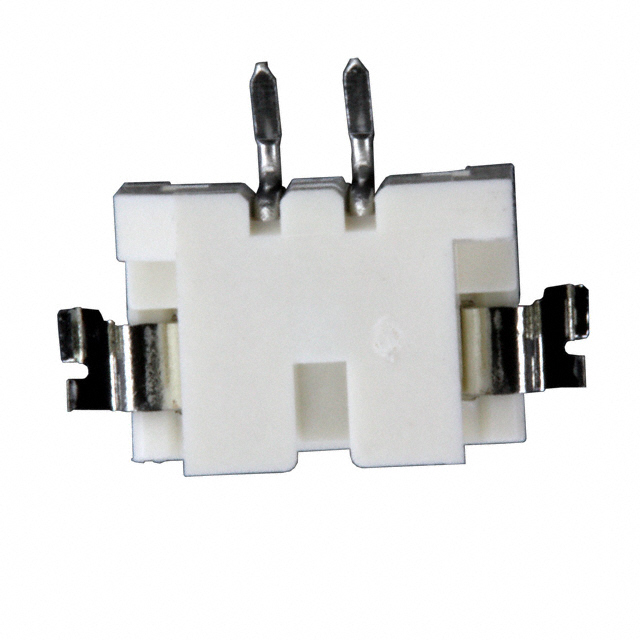

DF3E-2P-2H(21)
Hirose Electric Co Ltd
.jpg "DF3E-2P-2H(24)")

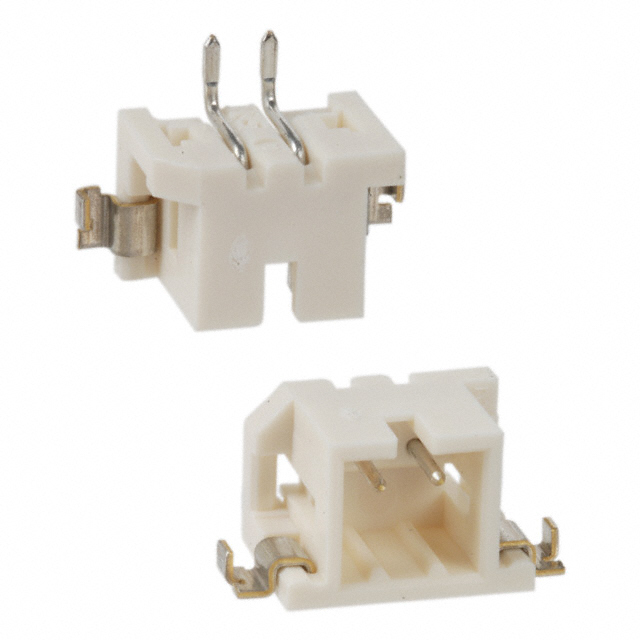

DF3E-2P-2H(24)
