Product CatalogPart Number
DFLS160-7
Manufacturer
Diodes IncorporatedDescription
DIODE SCHOTTKY 60V 1A PWRDI123
Datasheet
DatasheetPackage
POWERDI®123
In Stock
82,416 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DFLS160-7
DFLS160-7
lmages are for reference only.Payment Methods
Delivery Services
Diode 60 V 1A Surface Mount PowerDI™ 123
Quick Inquiry
DFLS160-7
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 100 µA @ 60 V |
| Capacitance @ Vr, F | 67pF @ 10V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | POWERDI®123 |
| Supplier Device Package | PowerDI™ 123 |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Base Product Number | DFLS160 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

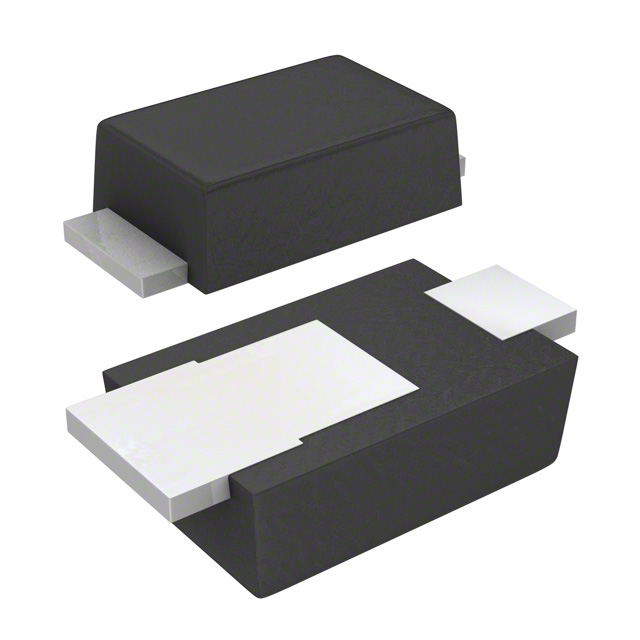

| Part Number | DFLS160-7-2477 | DFLS160Q-7 | DFLS160Q-7-2478 | DFLF1800-13 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE | DIODE SCHOTTKY 60V 1A PWRDI123 | DIODE | DIODE GP 800V 1A POWERDI123 |
| Series | - | - | - | - |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Bulk |
Customers Also Interested in
Recommended Products

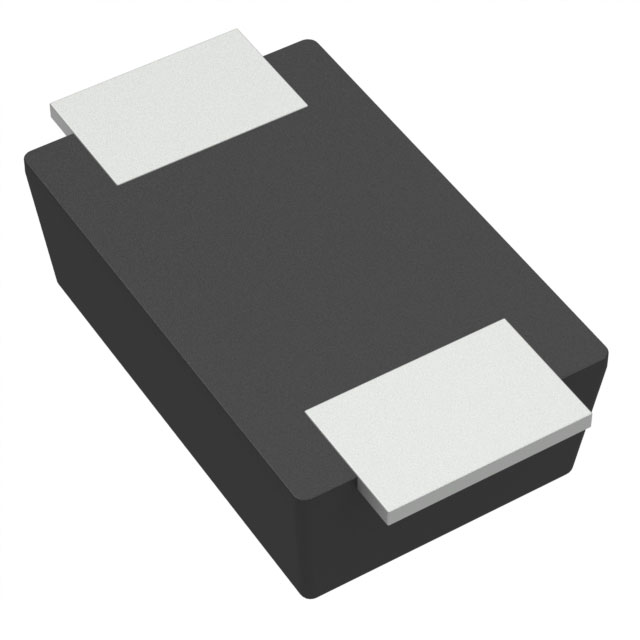

DFLS1100-7
