DG2501DB-T2-GE1

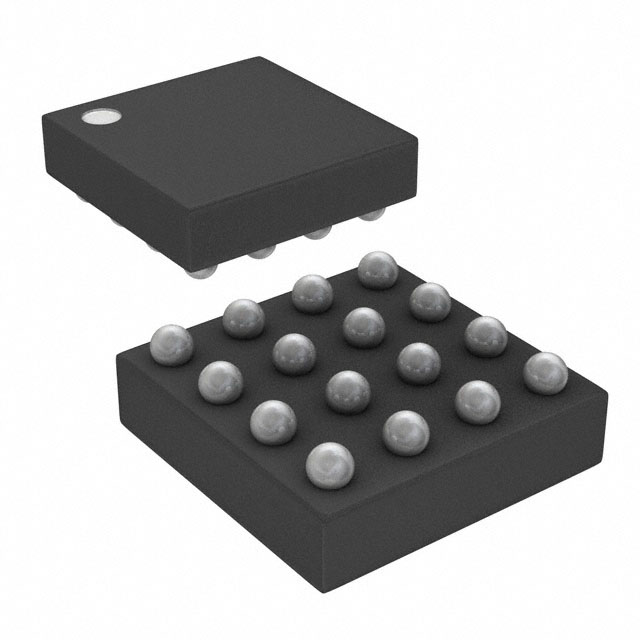

lmages are for reference only.DG2501DB-T2-GE1
IC SW SPST-NCX4 200OHM 16WCSP
Datasheet16-XFBGA, WLCSP
20,230 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4 Circuit IC Switch 1:1 200Ohm 16-WCSP (1.44x1.44)
DG2501DB-T2-GE1
| Category | Integrated Circuits (ICs) - Interface - Analog Switches-Multiplexers-Demultiplexers |
| Manufacturer | Vishay Siliconix |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 200Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 100ns, 60ns |
| -3db Bandwidth | 550MHz |
| Charge Injection | -2pC |
| Channel Capacitance (CS(off), CD(off)) | 2.9pF, 2.8pF |
| Current - Leakage (IS(off)) (Max) | 400pA |
| Crosstalk | -83dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-XFBGA, WLCSP |
| Supplier Device Package | 16-WCSP (1.44x1.44) |
| Base Product Number | DG2501 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | DG2501DB-T2-GE1 | DG2502DB-T2-GE1 | DG2502DB-T2-GE1 | DG2503DB-T2-GE1 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC SW SPST-NCX4 200OHM 16WCSP | IC SW SPST-NOX4 200OHM 16WCSP | IC SW SPST-NOX4 200OHM 16WCSP | IC SW SPST-NO/NCX4 200OHM 16WCSP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
