DG542AP
Manufacturer
Vishay SiliconixDescription
IC SWITCH QUAD SPST 16DIP
Datasheet
DatasheetPackage
16-DIP (0.300", 7.62mm)
In Stock
46,331 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DG542AP
DG542AP
lmages are for reference only.Payment Methods
Delivery Services
Video Switch IC 4 Channel 16-DIP
Quick Inquiry
DG542AP
Specifications
| Category | Integrated Circuits (ICs) - Interface - Analog Switches Special Purpose |
| Manufacturer | Vishay Siliconix |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Applications | Video |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Switch Circuit | SPST |
| Number of Channels | 4 |
| On-State Resistance (Max) | 60Ohm |
| Voltage - Supply, Single (V+) | 3V ~ 15V |
| Voltage - Supply, Dual (V±) | ±3V ~ 15V |
| -3db Bandwidth | 500MHz |
| Features | RGB, T-Switch Configuration |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-DIP |
| Base Product Number | DG542 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |

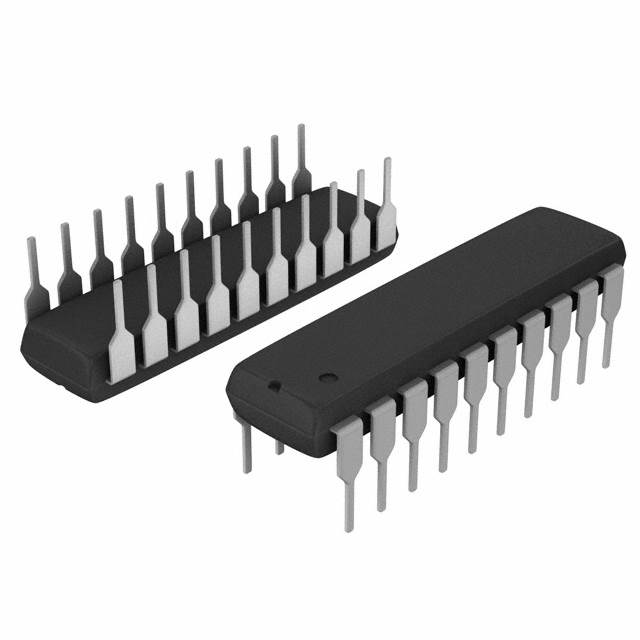

| Part Number | DG540AP/883 | DG540DJ | DG540DJ-E3 | DG540DN |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | IC SWITCH QUAD SPST 20DIP | IC SWITCH QUAD SPST 20DIP | IC SWITCH QUAD SPST 20DIP | IC SWITCH QUAD SPST 20PLCC |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Bulk | Tube |
