DHP106095S-4R7MHF

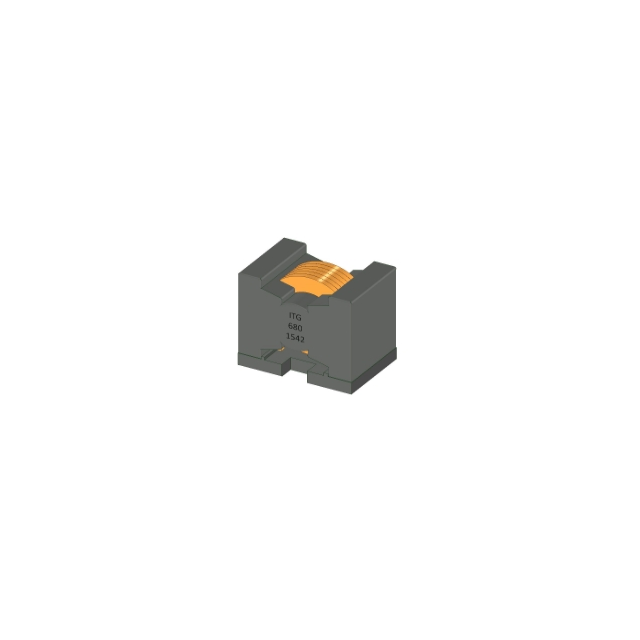

lmages are for reference only.DHP106095S-4R7MHF
FIXED IND 4.7UH 31A 2.2 MOHM TH
DatasheetRadial, Vertical
97,993 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.7 µH Shielded Inductor 31 A 2.2mOhm Radial, Vertical
DHP106095S-4R7MHF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | DHP106095S |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 31 A |
| Current - Saturation (Isat) | 65A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.2mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 300 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical |
| Supplier Device Package | - |
| Size / Dimension | 1.063" L x 0.724" W (27.00mm x 18.40mm) |
| Height - Seated (Max) | 0.949" (24.10mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|

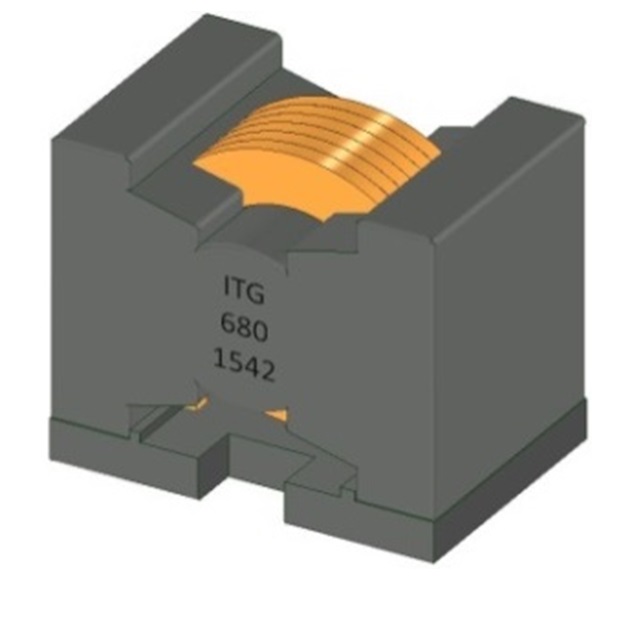

| Part Number | DHP106095S-100MHF | DHP106095S-101MHF | DHP106095S-120MHF | DHP106095S-120MHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 26.8A 2.9MOHM TH | FIXED IND 100UH 11.5A 15.5 MOHM | FIXED IND 12UH 26.8A 2.9MOHM TH | FIXED IND 12UH 26.8A 2.9MOHM TH |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Tray | Tray | Tray | Tray |
