DIP-1A12
lmages are for reference only.DIP-1A12
200V/1A REED RELAY, 1 FORM A, 12
Datasheet-
88,708 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
DIP-1A12
| Category | Relays - Reed Relays - |
| Manufacturer | Bright Toward Industrial Co., Ltd. |
| Series | DIP |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 500 mA |
| Switching Voltage | 100VAC, 100VDC - Max |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1 VDC |
| Operating Temperature | -20°C ~ 85°C |
| Contact Material | - |
| Coil Resistance | 1 kOhms |
| Coil Current | 12 mA |
| Operate Time | 1 ms |
| Release Time | 0.5 ms |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

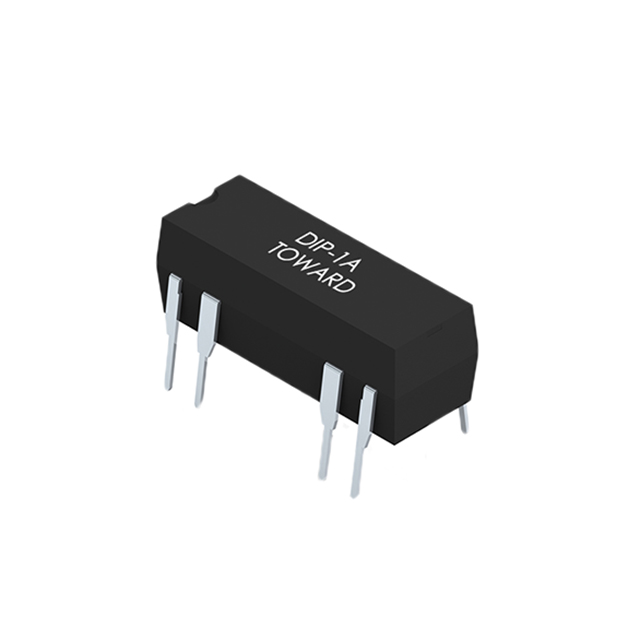

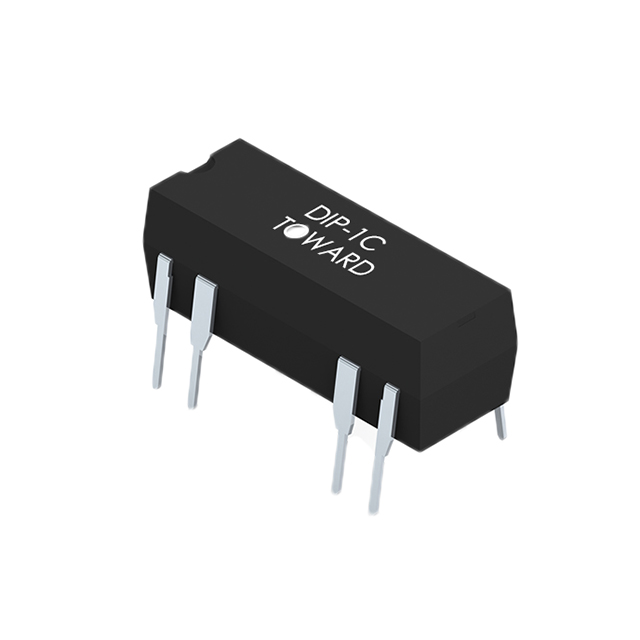

| Part Number | DIP-1A12D | DIP-1A05 | DIP-1A05D | DIP-1C05 |
| Manufacturer | Bright Toward Industrial Co., Ltd. | Bright Toward Industrial Co., Ltd. | Bright Toward Industrial Co., Ltd. | Bright Toward Industrial Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 200V/1A REED RELAY, 1 FORM A, 12 | 200V/1A REED RELAY, 1 FORM A, 5V | 200V/1A REED RELAY, 1 FORM A, 5V | 200V/0.5A REED RELAY, 1 FORM C, |
| Series | DIP | DIP | DIP | DIP |
| Packaging | Tube | Tube | Tube | Tube |
