DKIH-3358-40D2

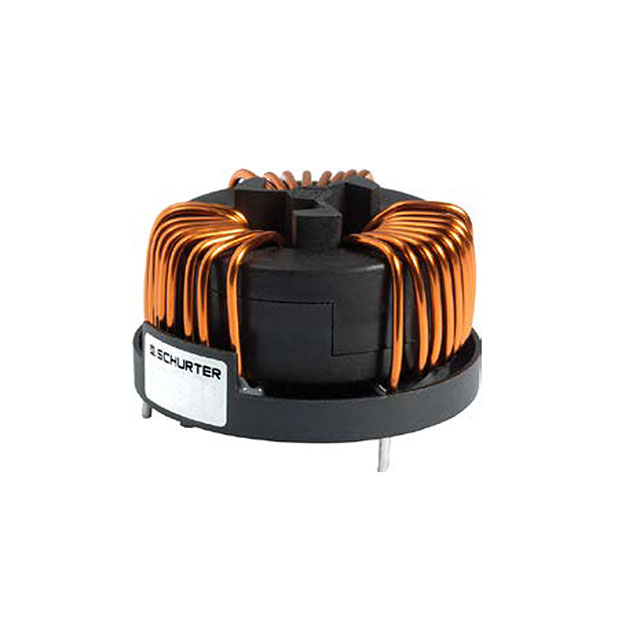

lmages are for reference only.DKIH-3358-40D2
DKIH-3 COMP.CHOKE 3PH 40A 0.15MH
DatasheetHorizontal, 6 PC Pin
32,890 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3 Line Common Mode Choke Through Hole 40A DCR 0.6mOhm (Typ)
DKIH-3358-40D2
| Category | Filters - Common Mode Chokes - |
| Manufacturer | SCHURTER Inc. |
| Series | DKIH |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 3 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 40A |
| DC Resistance (DCR) (Max) | 0.6mOhm (Typ) |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 600V |
| Operating Temperature | -40°C ~ 100°C |
| Ratings | - |
| Approval Agency | CE, IEC, UKCA |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 2.283" Dia (58.00mm) |
| Height (Max) | 1.220" (31.00mm) |
| Package / Case | Horizontal, 6 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | DKIH-3358-401J-NK | DKIH-3352-1011-NK | DKIH-3352-102J | DKIH-3352-120Q-NK |
| Manufacturer | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 40A 3LN TH | CMC 10A 3LN TH | CMC 10A 3LN TH | CMC 12A 3LN TH |
| Series | DKIH | DKIH | DKIH | DKIH |
| Packaging | Bulk | Bulk | Box | Bulk |
