DLH-22-0002
lmages are for reference only.DLH-22-0002
FIXED IND 3MH 600MA 1.55 OHM TH
DatasheetRadial, Horizontal - Corner Terminals
79,591 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3 mH Shielded Inductor 600 mA 1.55Ohm Radial, Horizontal - Corner Terminals
DLH-22-0002
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | SCHURTER Inc. |
| Series | DLH |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | - |
| Inductance | 3 mH |
| Tolerance | ±15% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.55Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal - Corner Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.906" L x 0.512" W (23.00mm x 13.00mm) |
| Height - Seated (Max) | 0.945" (24.00mm) |
| Base Product Number | DLH-22 |
| Product Attribute |  |
 |
 |
 |
| Part Number | DLH-22-0001 | DLH-22-0004 | DLH-22-0005 | DLH-22-0006 |
| Manufacturer | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

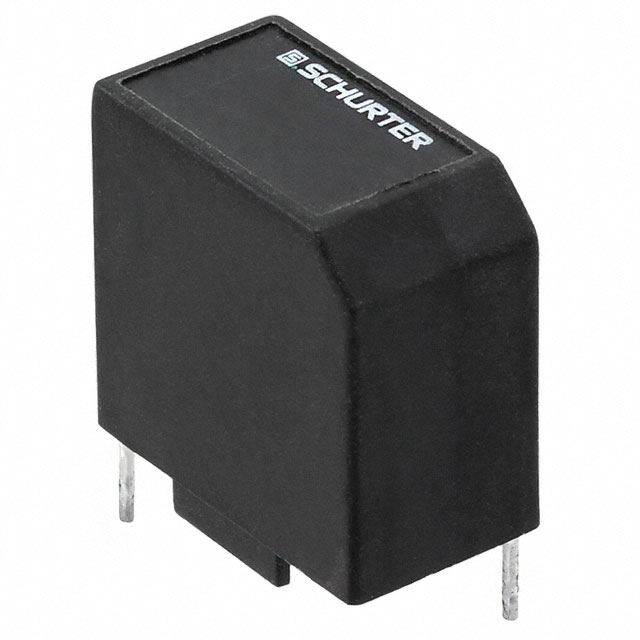

| Description | FIXED IND 5MH 450MA 2.6 OHM TH | FIXED IND 500UH 1.5A 280 MOHM TH | FIXED IND 300UH 1.8A 180 MOHM TH | FIXED IND 100UH 3A 70 MOHM TH |
| Series | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
