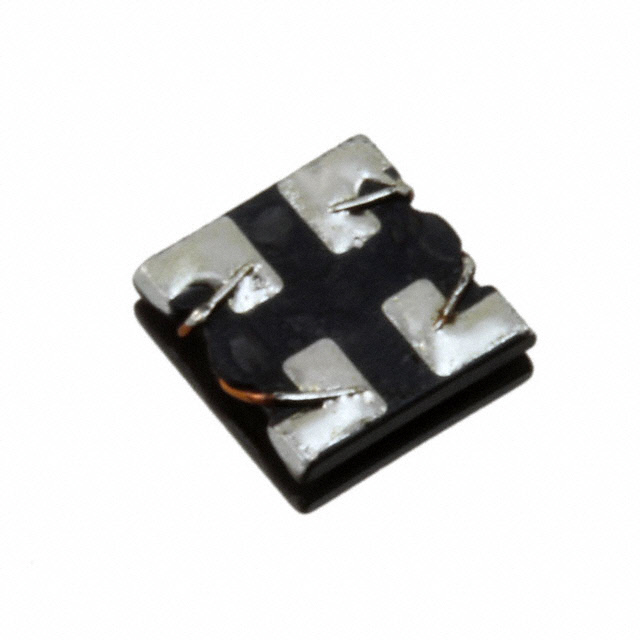

DLW44SN242SK2L
lmages are for reference only.DLW44SN242SK2L
CMC 1.4A 2LN 2.4K OHM SMD
DatasheetHorizontal, 4 PC Pad
20,167 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Line Common Mode Choke Surface Mount 2.4 kOhms @ 100 MHz 1.4A DCR 105mOhm
DLW44SN242SK2L
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Murata Electronics |
| Series | DLW44 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 1.4A |
| DC Resistance (DCR) (Max) | 105mOhm |
| Voltage Rating - DC | 60V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.157" Dia x 0.157" W (4.00mm x 4.00mm) |
| Height (Max) | 0.059" (1.50mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Base Product Number | DLW44SN |
| Impedance @ Frequency | 2.4 kOhms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

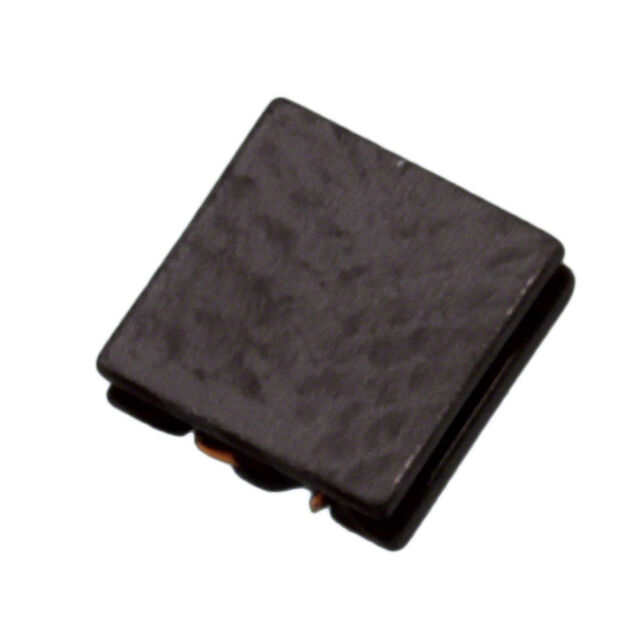

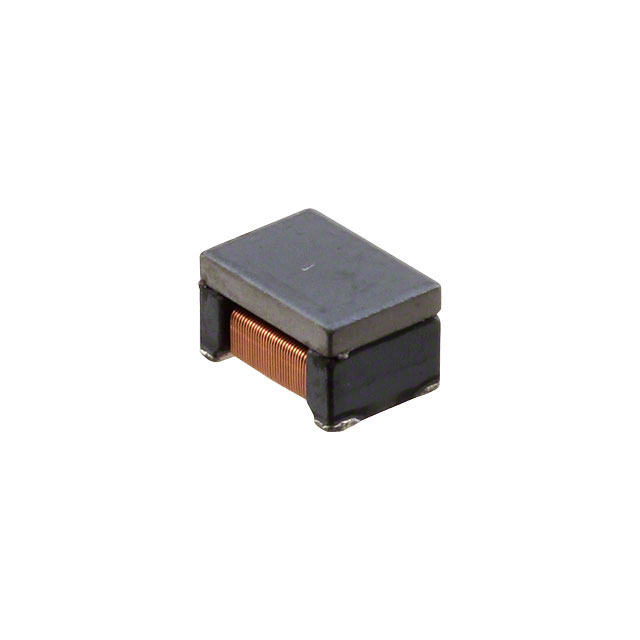

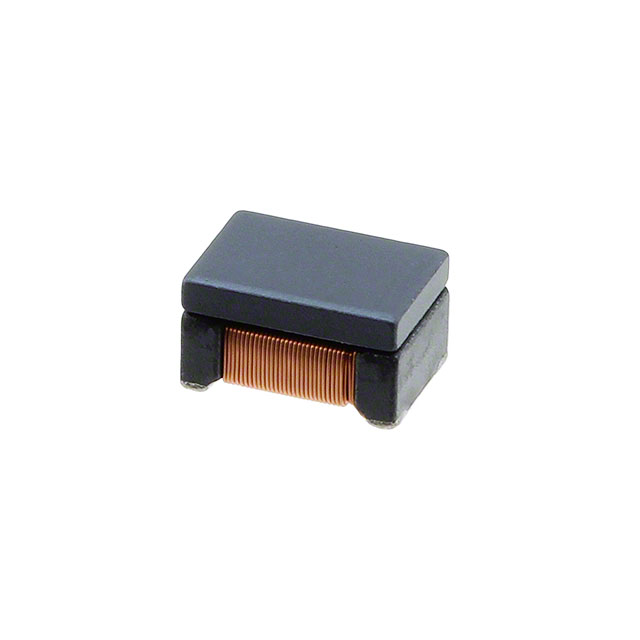

| Part Number | DLW44SN251SK2L | DLW43MH201XK2L | DLW43SH101XK2 | DLW43SH101XK2L |
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 2.6A 2LN 250 OHM SMD | CMC 200UH 110MA 2LN SMD AEC-Q200 | CMC 100UH 200MA 2LN SMD AEC-Q200 | CMC 100UH 200MA 2LN SMD AEC-Q200 |
| Series | DLW32 | DLW43 | DLW32 | DLW43 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
