Product CatalogPart Number
DM3AT-SF-PEJM5(15)
Manufacturer
Hirose Electric Co LtdDescription
CONN MICRO SD R/A PUSH-PUSH SMD
Datasheet
DatasheetPackage
-
In Stock
47,609 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DM3AT-SF-PEJM5(15)
.jpg "DM3AT-SF-PEJM5(15)")
DM3AT-SF-PEJM5(15)
lmages are for reference only.Payment Methods
Delivery Services
10 (8 + 2) Position Card Connector Secure Digital - microSD™ Surface Mount, Right Angle Gold
Quick Inquiry
DM3AT-SF-PEJM5(15)
Specifications
| Category | Connectors, Interconnects - Memory Connectors - PC Card Sockets |
| Manufacturer | Hirose Electric Co Ltd |
| Series | DM3 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Card Type | Secure Digital - microSD™ |
| Number of Positions | 10 (8 + 2) |
| Connector Type | Connector and Ejector |
| Insertion, Removal Method | Push In, Push Out |
| Ejector Side | - |
| Mounting Type | Surface Mount, Right Angle |
| Features | Switch |
| Height Above Board | 0.066" (1.68mm) |
| Mounting Feature | Normal, Standard - Top |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Base Product Number | DM3AT |
Parts with Similar Specifications
| Product Attribute | .jpg "DM3AT-SF-PEJM5(11)") |
.jpg "DM3AT-SF-PEJM5(26)") |

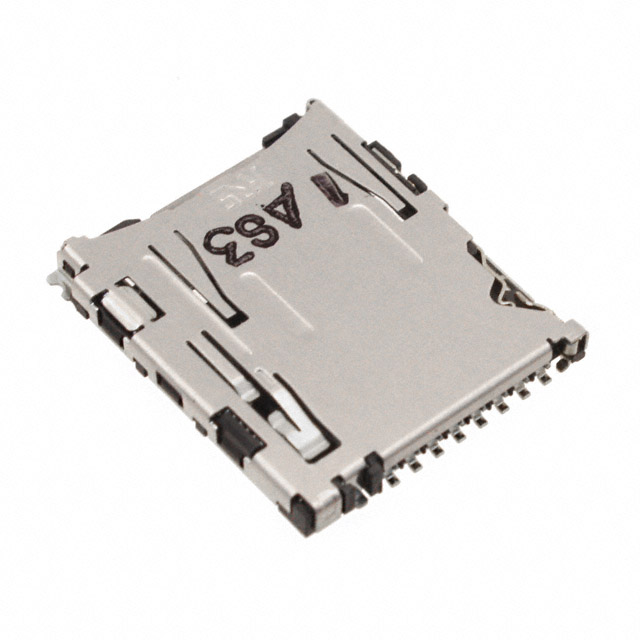

.jpg "DM3AT-SF-PEJM5(40)") |
.jpg "DM3AT-SF-PEJM5(41)") |
| Part Number | DM3AT-SF-PEJM5(11) | DM3AT-SF-PEJM5(26) | DM3AT-SF-PEJM5(40) | DM3AT-SF-PEJM5(41) |
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | CONN MICRO SD R/A PUSH-PUSH SMD | CONN MICRO SD R/A PUSH-PUSH SMD | CONN MICRO SD R/A PUSH-PUSH SMD | CONN MICRO SD R/A PUSH-PUSH SMD |
| Series | DM3 | DM3 | DM3 | DM3 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
