DMN1001UCA10-7
lmages are for reference only.DMN1001UCA10-7
MOSFET 2N-CH 12V 20A X2-TSN1820
Datasheet10-SMD, No Lead
97,095 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 12V 20A (Ta) 1W Surface Mount X2-TSN1820-10
DMN1001UCA10-7
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) Common Drain |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 12V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta) |
| Rds On (Max) @ Id, Vgs | 3.55mOhm @ 5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.4V @ 870µA |
| Gate Charge (Qg) (Max) @ Vgs | 29nC @ 4V |
| Input Capacitance (Ciss) (Max) @ Vds | 2865pF @ 6V |
| Power - Max | 1W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD, No Lead |
| Supplier Device Package | X2-TSN1820-10 |
| Base Product Number | DMN1001 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | DMN1002UCA6-7 | DMN1003UCA6-7 | DMN1006UCA6-7 | DMN1029UFDB-13 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

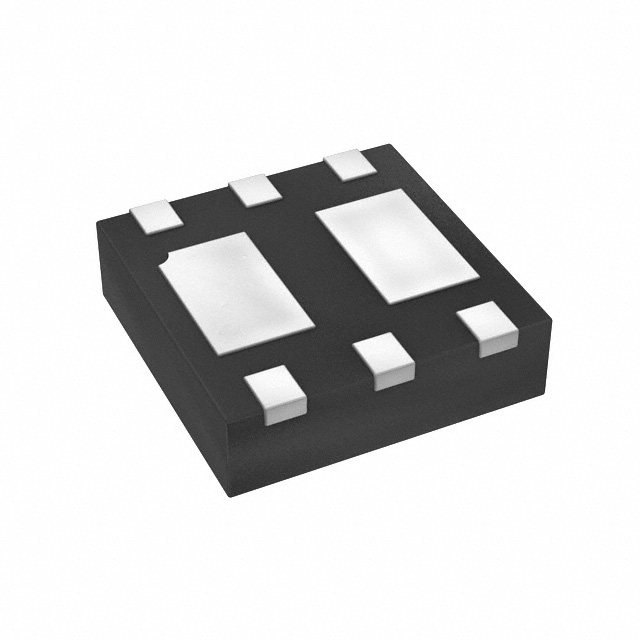

| Description | MOSFET 2N-CH X4-DSN3118-6 | MOSFET 2N-CH X3-DSN3518-6 | MOSFET 2N-CH X3-DSN2718-6 | MOSFET 2N-CH 12V 5.6A 6UDFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
