DMP1245UFCL-7

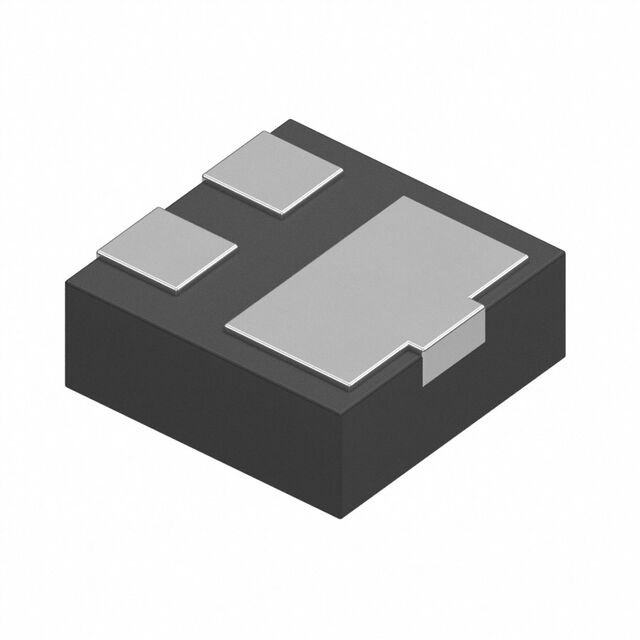

lmages are for reference only.DMP1245UFCL-7
MOSFET P-CH 12V 6.6A X1-DFN1616
Datasheet6-PowerUFDFN
45,800 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
P-Channel 12 V 6.6A (Ta) 613mW (Ta) Surface Mount X1-DFN1616-6 (Type E)
DMP1245UFCL-7
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 6.6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 29mOhm @ 4A, 4.5V |
| Vgs(th) (Max) @ Id | 950mV @ 250µA |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 1357.4 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 613mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | X1-DFN1616-6 (Type E) |
| Package / Case | 6-PowerUFDFN |
| Base Product Number | DMP1245 |
| Gate Charge (Qg) (Max) @ Vgs | 26.1 nC @ 8 V |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
|
| Part Number | DMP1005UFDF-13 | DMP1005UFDF-7 | DMP1007UCB9-7 | DMP1008UCA9-7 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET P-CH 12V 26A 6UDFN | MOSFET P-CH 12V 26A 6UDFN | MOSFET P-CH 8V 13.2A U-WLB1515-9 | MOSFET P-CH 8V 16A X2-DSN1515-9 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
