DMP2004DWK-7
lmages are for reference only.DMP2004DWK-7
MOSFET 2P-CH 20V 0.43A SOT363
Datasheet6-TSSOP, SC-88, SOT-363
73,948 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 20V 430mA 250mW Surface Mount SOT-363
DMP2004DWK-7
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 430mA |
| Rds On (Max) @ Id, Vgs | 900mOhm @ 430mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | 175pF @ 16V |
| Power - Max | 250mW |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
| Base Product Number | DMP2004 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|

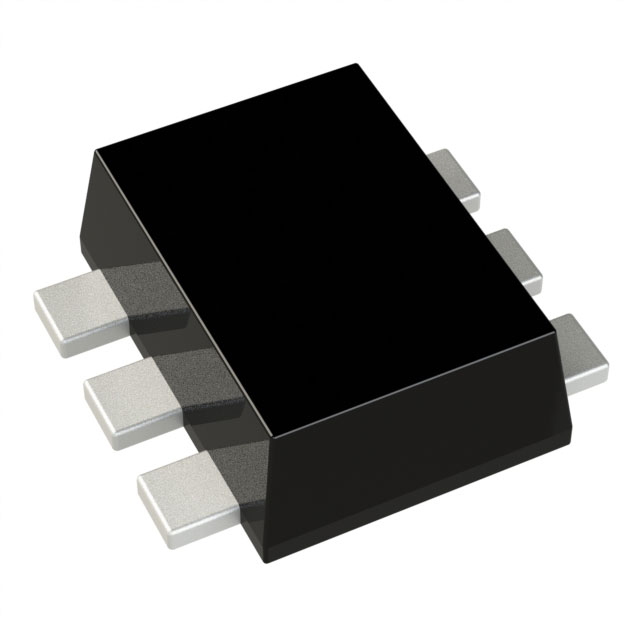

| Part Number | DMP2004DMK-7 | DMP2004VK-7 | DMP31D7LDW-7 | DMP68D1LV-13 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET 2P-CH 20V 0.55A SOT26 | MOSFET 2P-CH 20V 0.53A SOT563 | MOSFET 2P-CH 0.55A SOT363 | MOSFET 2P-CH 60V 0.238A SOT563 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
