DMP31D7LVQ-13

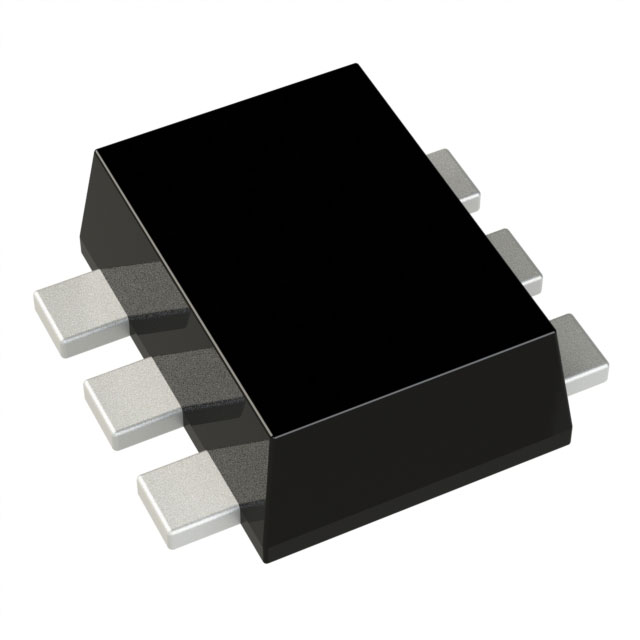

lmages are for reference only.DMP31D7LVQ-13
MOSFET 2P-CH 30V 0.62A SOT563
DatasheetSOT-563, SOT-666
22,306 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 30V 620mA (Ta) 500mW (Ta) Surface Mount SOT-563
DMP31D7LVQ-13
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 P-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 620mA (Ta) |
| Rds On (Max) @ Id, Vgs | 900mOhm @ 420mA, 10V |
| Vgs(th) (Max) @ Id | 2.6V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.8nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 19pF @ 15V |
| Power - Max | 500mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SOT-563 |
| Base Product Number | DMP31 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
 |
| Part Number | DMP31D7LVQ-7 | DMP31D7LDW-13 | DMP31D7LDW-7 | DMP31D7LDWQ-13 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET 2P-CH 30V 0.62A SOT563 | MOSFET 2P-CH 0.55A SOT363 | MOSFET 2P-CH 0.55A SOT363 | MOSFET 2P-CH 30V 0.55A SOT363 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
