DMP4026SFGQ-13
lmages are for reference only.DMP4026SFGQ-13
MOSFET BVDSS: 31V~40V POWERDI333
Datasheet8-PowerVDFN
67,841 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
P-Channel 40 V 28A (Tc) 2.6W (Ta), 33W (Tc) Surface Mount POWERDI3333-8
DMP4026SFGQ-13
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 28A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 1.8V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2275 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.6W (Ta), 33W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | POWERDI3333-8 |
| Package / Case | 8-PowerVDFN |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 48 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |

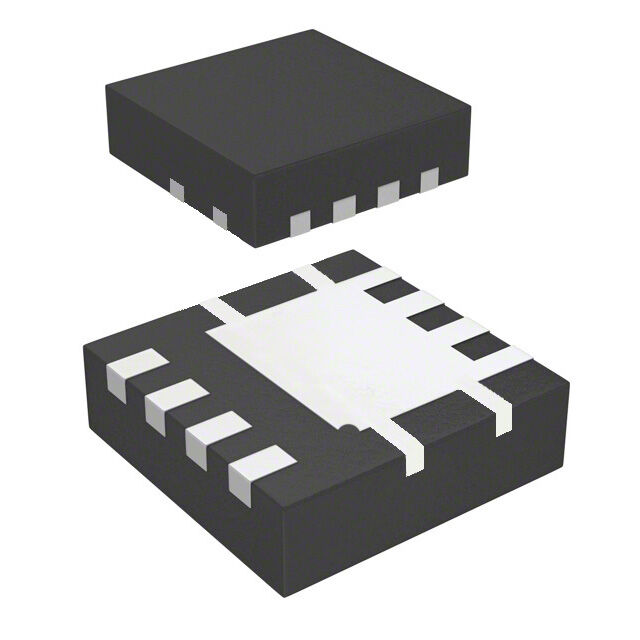

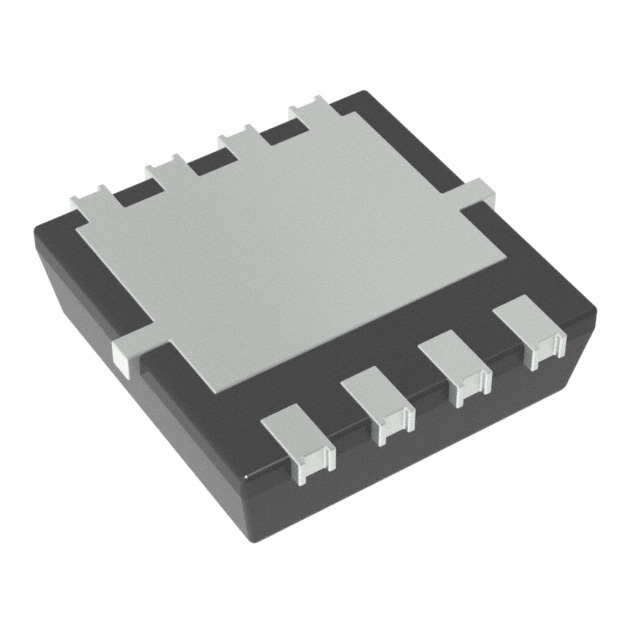

| Part Number | DMP4026SFGQ-7 | DMP4026SFG-13 | DMP4026SFG-7 | DMP4026SFVW-13 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET BVDSS: 31V~40V POWERDI333 | MOSFET BVDSS: 31V~40V POWERDI333 | MOSFET BVDSS: 31V~40V POWERDI333 | MOSFET BVDSS: 31V~40V POWERDI333 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
