DMT10H017LPD-13
lmages are for reference only.DMT10H017LPD-13
MOSFET 2N-CH 100V 54.7A PWRDI50
Datasheet8-PowerTDFN
84,218 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 100V 54.7A (Tc) 2.2W (Ta), 78W (Tc) Surface Mount PowerDI5060-8
DMT10H017LPD-13
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 54.7A (Tc) |
| Rds On (Max) @ Id, Vgs | 17.4mOhm @ 17A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 28.6nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1986pF @ 50V |
| Power - Max | 2.2W (Ta), 78W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN |
| Supplier Device Package | PowerDI5060-8 |
| Base Product Number | DMT10 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
|

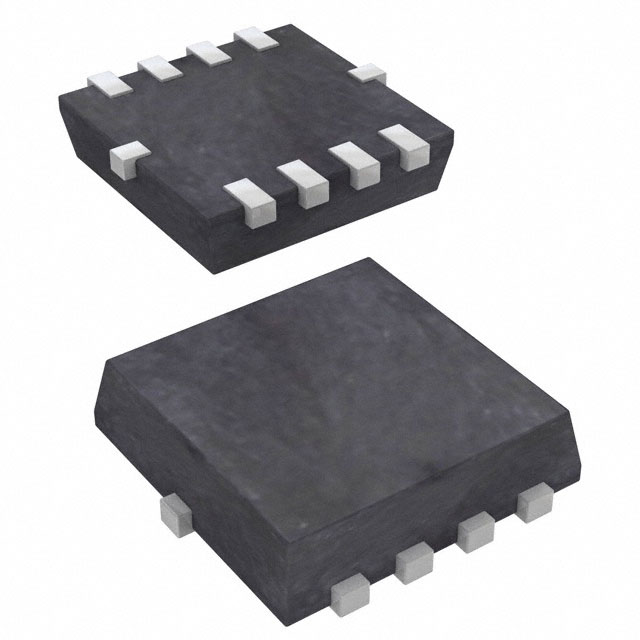

| Part Number | DMT10H032LDV-13 | DMT10H032LDV-7 | DMT10H032LDVW-13 | DMT10H032LDVW-7 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET 2N-CH 100V 18A PWRDI3333 | MOSFET 2N-CH 100V 18A PWRDI3333 | MOSFET 2N-CH 100V 6.9A PWRDI3333 | MOSFET 2N-CH 100V 6.9A PWRDI3333 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
