DMTH10H003SPSW-13
lmages are for reference only.DMTH10H003SPSW-13
MOSFET BVDSS: 61V~100V POWERDI50
Datasheet8-PowerTDFN
95,153 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 100 V 166A (Tc) 2.6W (Ta), 167W (Tc) Surface Mount PowerDI5060-8 (Type Q)
DMTH10H003SPSW-13
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 166A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 3mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5542 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.6W (Ta), 167W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerDI5060-8 (Type Q) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | DMTH10 |
| Gate Charge (Qg) (Max) @ Vgs | 85 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

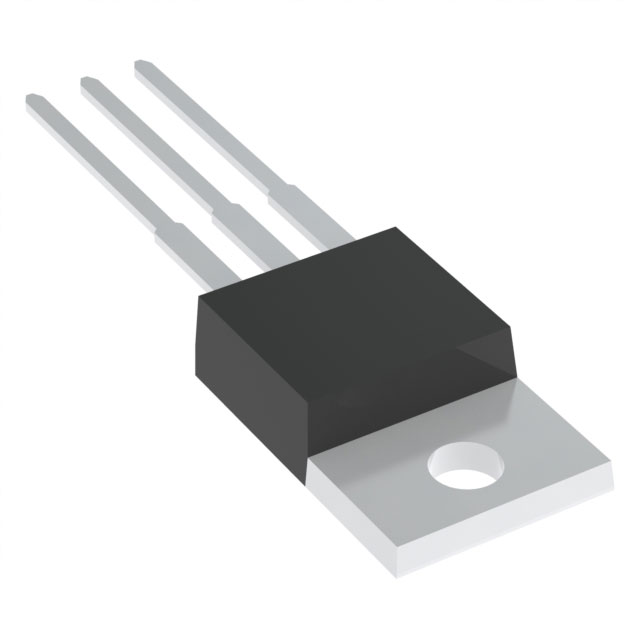

| Part Number | DMTH10H005LCT | DMTH10H005SCT | DMTH10H009LFG-13 | DMTH10H009LFG-7 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 100V 140A TO220AB | MOSFET N-CH 100V 140A TO220AB | MOSFET BVDSS: 61V~100V POWERDI33 | MOSFET BVDSS: 61V~100V POWERDI33 |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
