DMTH4005SPS-13

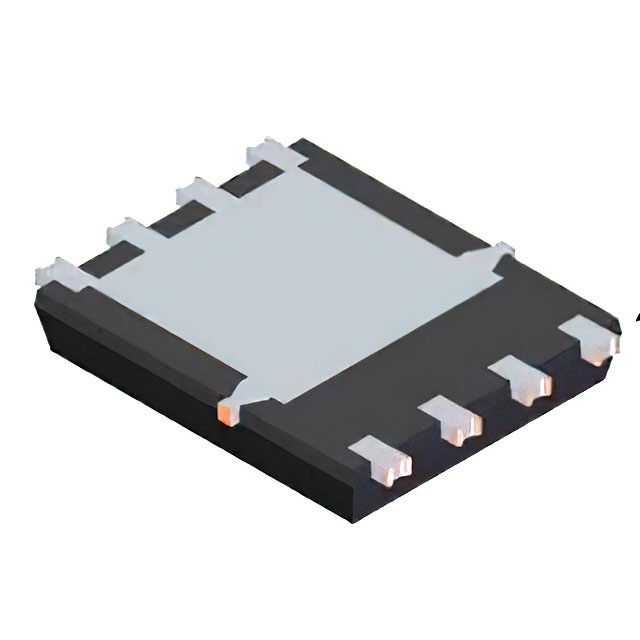

lmages are for reference only.DMTH4005SPS-13
MOSFET N-CH 40V 20.9A PWRDI5060
Datasheet8-PowerTDFN
34,434 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 40 V 20.9A (Ta), 100A (Tc) 2.6W (Ta), 150W (Tc) Surface Mount PowerDI5060-8
DMTH4005SPS-13
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 20.9A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 3.7mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3062 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.6W (Ta), 150W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerDI5060-8 |
| Package / Case | 8-PowerTDFN |
| Base Product Number | DMTH4005 |
| Gate Charge (Qg) (Max) @ Vgs | 49.1 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | DMTH4005SPSQ-13 | DMTH4005SPSWQ-13 | DMTH4005SCT | DMTH4005SK3-13 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 40V 20.9A PWRDI5060 | MOSFET BVDSS: 31V~40V POWERDI506 | MOSFET N-CH 40V 100A TO220AB | MOSFET N-CH 40V 95A TO252 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
