DMTH6016LFDFW-13

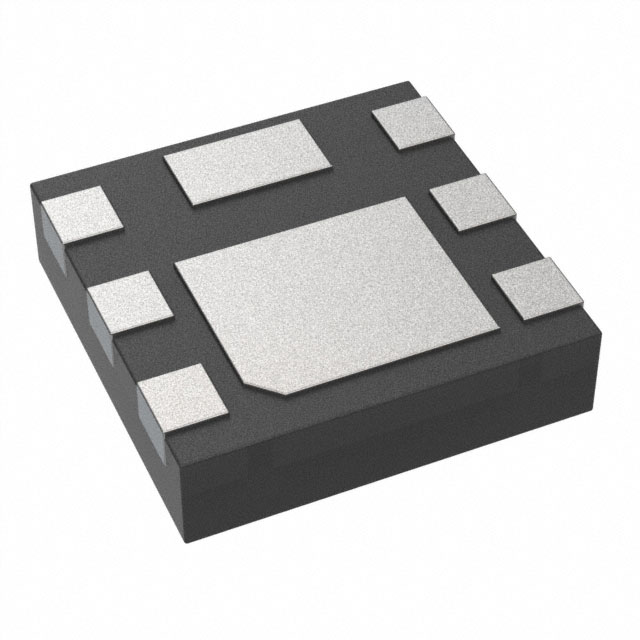

lmages are for reference only.DMTH6016LFDFW-13
MOSFET N-CH 60V 9.4A 6UDFN
Datasheet6-UDFN Exposed Pad
97,856 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 60 V 9.4A (Ta) 1.06W (Ta) Surface Mount U-DFN2020-6 (SWP) (Type F)
DMTH6016LFDFW-13
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 9.4A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 18mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 925 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.06W (Ta) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | U-DFN2020-6 (SWP) (Type F) |
| Package / Case | 6-UDFN Exposed Pad |
| Base Product Number | DMTH6016 |
| Gate Charge (Qg) (Max) @ Vgs | 15.3 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | DMTH6016LFDFW-7 | DMTH6016LFDFWQ-13 | DMTH6016LFDFWQ-7 | DMTH6016LFDFWQ-7R |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 60V 9.4A 6UDFN | MOSFET N-CH 60V 9.4A 6UDFN | MOSFET N-CH 60V 9.4A 6UDFN | MOSFET N-CH 60V 9.4A 6UDFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
