DMTH8028LPSW-13

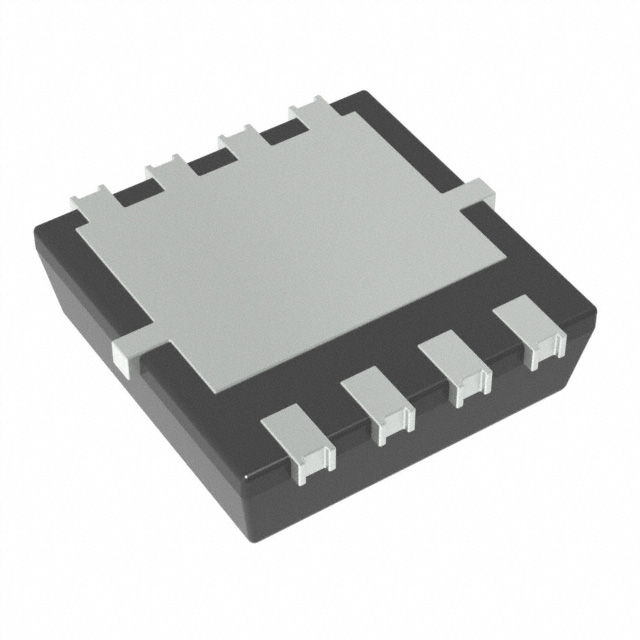

lmages are for reference only.DMTH8028LPSW-13
MOSFET BVDSS: 61V~100V POWERDI50
Datasheet8-PowerTDFN
74,463 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 80 V 41.7A (Tc) 3.9W (Ta), 65W (Tc) Surface Mount, Wettable Flank PowerDI5060-8 (Type UX)
DMTH8028LPSW-13
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 41.7A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 5A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 641 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.9W (Ta), 65W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | PowerDI5060-8 (Type UX) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 10.4 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | DMTH8028LPSWQ-13 | DMTH8028LFVW-13 | DMTH8028LFVW-7 | DMTH8028LFVWQ-13 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET BVDSS: 61V~100V POWERDI50 | MOSFET BVDSS: 61V~100V POWERDI33 | MOSFET BVDSS: 61V~100V POWERDI33 | MOSFET BVDSS: 61V~100V POWERDI33 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
