DP1RD20JQ2
Manufacturer
JAE ElectronicsDescription
CONN RCP 1.1A DISPLAYPORT SMD RA
Datasheet
DatasheetPackage
-
In Stock
17,175 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

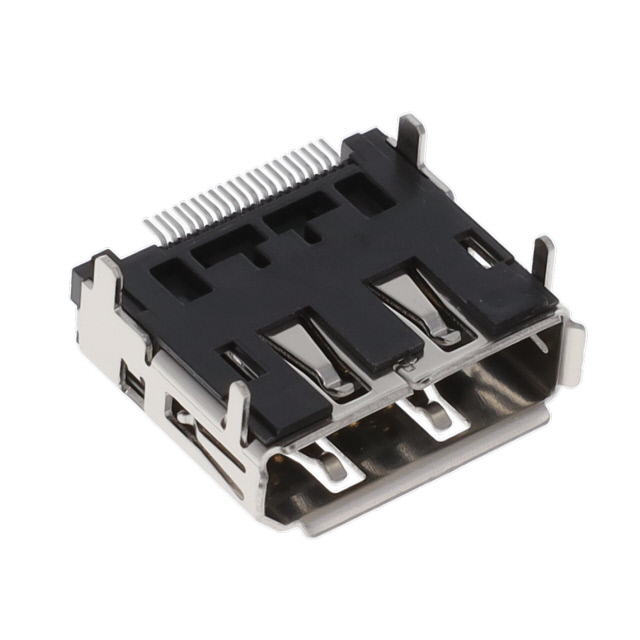

DP1RD20JQ2
DP1RD20JQ2
lmages are for reference only.Payment Methods
Delivery Services
DisplayPort Display Port 1.1a Receptacle Connector 20 Position Surface Mount, Right Angle
Quick Inquiry
DP1RD20JQ2
Specifications
| Category | Connectors, Interconnects - USB-DVI-HDMI Connectors - USB-DVI-HDMI Connector Assemblies |
| Manufacturer | JAE Electronics |
| Series | DP1 |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Connector Type | DisplayPort |
| Number of Contacts | 20 |
| Gender | Receptacle |
| Specifications | Display Port 1.1a |
| Mounting Type | Surface Mount, Right Angle |
| Mounting Feature | Horizontal, Reverse Mount |
| Termination | Solder |
| Features | Solder Retention |
| Ingress Protection | - |
| Operating Temperature | -20°C ~ 85°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 0.5A per Contact |
| Voltage - Rated | - |
| Mating Cycles | 10000 |
| Shielding | Unshielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Copper Alloy |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Base Product Number | - |
